TRANE SHE5328 OD Sheave with 1 Bore

Product Description

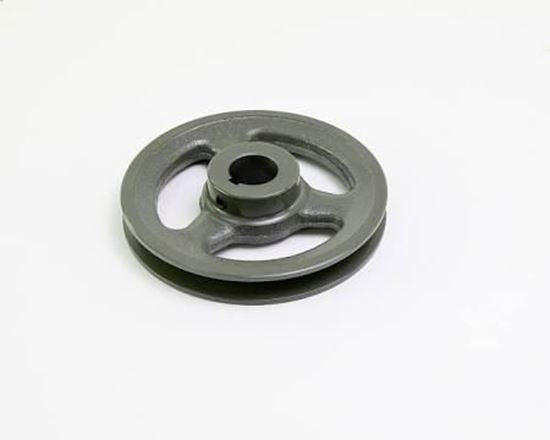

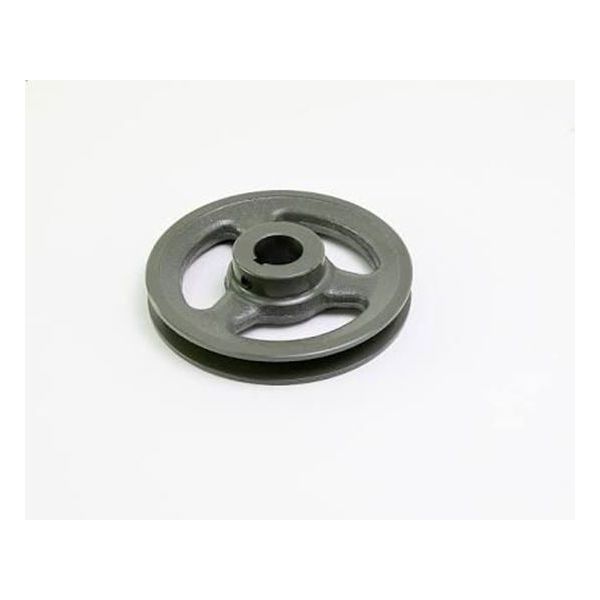

The Trane SHE5328 is a cast iron sheave designed for HVAC systems. It features an outside diameter of five point four five inches and a bore diameter of one inch. This component is essential for transferring rotary motion using belts. It operates similarly to a pulley with a grooved wheel design that allows a belt to fit snugly into the groove. Depending on its installation, the sheave or the connected shaft can rotate to drive the system.

• Durable cast iron construction.
• One-inch bore for easy shaft mounting.
• Five point four five inch outside diameter.

Product Highlights

This sheave works well in various HVAC applications, helping in the efficient running of motors and other equipment.

Product Information

Standard Information

• Brand: TRANE
• Country of Origin: US

Technical Specifications

• MPN: SHE5328
• Material: Cast Iron
• Outside Diameter: 5.45 inches
• Bore Diameter: 1 inch
• Number of Grooves: 1
• Keyway Size: 1/4 x 1/8 inches
• Weight: 2.14 lbs
• Finish: Powder Coated
• Length: 5.5 inches
• Width: 1.2 inches
• Inside Diameter: 1 inch
• Length Thru Bore: 1.32 inches
• Pitch Diameter: 4.86 (3L), 5.2 (A/4L) inches
• Pitch Length: 0.75 inches
• Width Face Size: 0.75 inches
