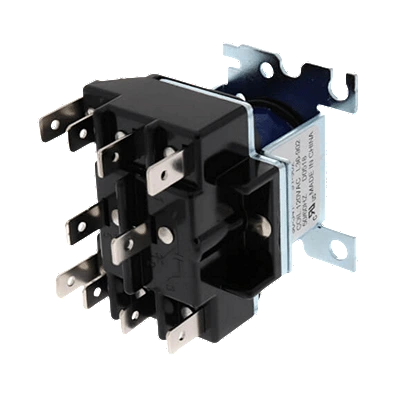

Trane RLY01710 DPDT Relay 120 V 12 A

Product Description

Trane RLY01710 is a plug-in DPDT (double pole double throw) power relay with a 120 V AC coil and a 12 A contact current rating. The relay is a general-purpose replacement used in HVAC and control panels and is specified with a nominal contact voltage of 277 V AC. The unit is designed for panel or socket mounting and is listed with NSN and manufacturer identification for traceability.

• DPDT (double pole double throw) contact configuration
• 120 V AC coil voltage with 12 A contact current rating and 277 V AC nominal contact voltage
• Plug-in mounting style for panel or socket replacement

Product Highlights

General-purpose Trane replacement relay, plug-in DPDT, 120 V AC coil, 12 A contacts, NSN-traceable

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: RLY01710
• Country of Origin: United States

Technical Specifications

• Brand: TRANE
• MPN: RLY01710
• Model Name: DPDT Relay
• Contact Configuration: DPDT (Double Pole Double Throw)
• Coil Voltage: 120 V AC
• Contact Current: 12 A
• Contact Voltage (AC Nominal): 277 V AC
• Mounting Type: Plug-in
• Category: Relays / Panel Accessories
• Manufacturer: TRANE U.S. INC.
• NSN: 5945-01-176-5454
• NIIN: 11765454
• Cage Code: 60532
• Federal Supply Class: 5945.0
