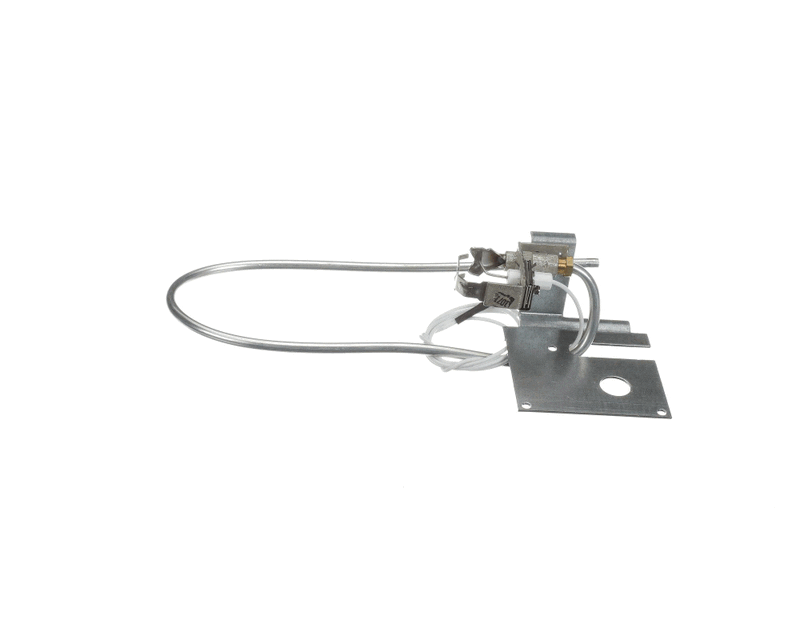

Trane PIT00084 Pilot Natural Gas Burner Assembly

Product Description

The TRANE PIT00084 is a right-hand pilot natural gas burner assembly designed for use in Trane gas-fired heating equipment. The pilot burner assembly serves as the ignition source for the main burner, providing a stable standing pilot flame that initiates the primary combustion cycle. This component is an OEM-style replacement part manufactured to Trane specifications. Licensed HVAC technicians and gas appliance service professionals are the typical installers for this type of component, as pilot burner replacement involves working within the gas train of a furnace or heating unit.

This pilot burner assembly is suited for residential and light commercial Trane gas heating systems that use a standing pilot ignition configuration. The right-hand orientation designates the side from which the pilot gas supply and thermocouple or thermopile connections are routed. Installers should confirm the hand orientation and connection type match the existing installation before ordering. Specific compatible Trane model numbers were not provided in the product data, so verification against the unit nameplate and service literature is recommended before installation.

Key Features

• Right-hand orientation for correct fitment in applicable Trane gas heating equipment
• Designed for natural gas fuel supply only
• OEM-style replacement maintains original combustion performance
• Serves as the standing pilot ignition source for the main burner assembly

Compatibility

Designed as an OEM-style replacement pilot burner assembly for Trane gas-fired furnaces and heating units that use a standing pilot ignition system with a right-hand pilot configuration. Confirm compatibility using the unit nameplate model number and Trane service documentation before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified gas appliance service professional in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the service valve and allow all components to cool completely before beginning disassembly. Verify that the replacement pilot orientation and orifice size match the original part using the unit service manual. After installation, test for gas leaks at all fittings using an approved leak-detection solution before restoring power and gas to the unit.

Technical Specifications

• Fuel Type: Natural Gas
• Orientation: Right Hand
• Assembly Type: Pilot Burner Assembly

Standard Information

• Brand: TRANE
• Manufacturer Part Number: PIT00084
