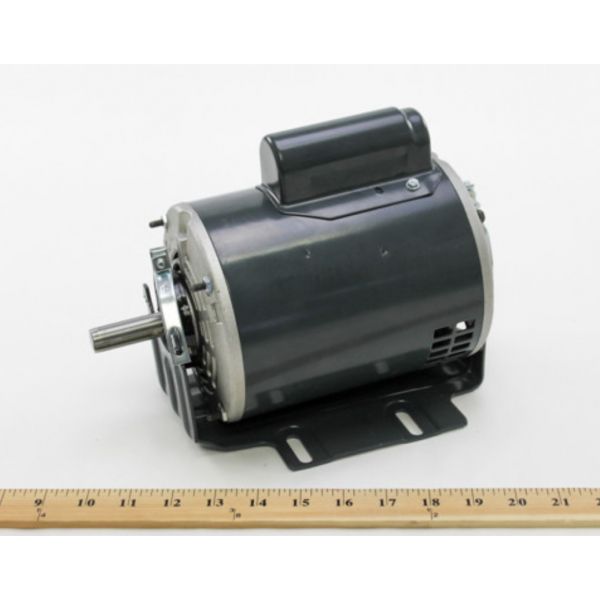

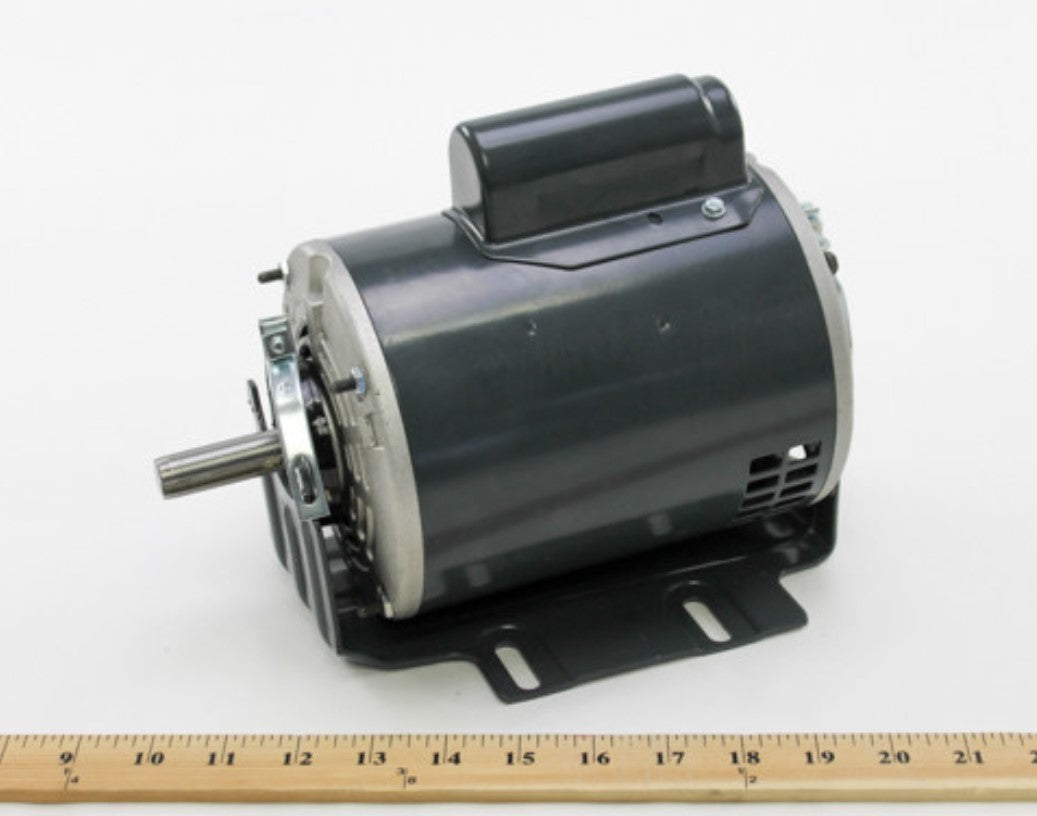

Trane MOT3072 Motor, 1/2 HP, 115/208-230V, 3450 RPM

Product Description

The Trane MOT3072 is an AC motor designed specifically for Trane HVAC systems. This motor provides a power output of 1/2 horsepower, operating at a speed of 3450 RPM. It features a single-phase, capacitor start system and comes equipped with ball bearings that ensure smooth operation. The motor is mounted using a resilient system that helps reduce vibration and noise. Additionally, it includes an automatic overload protector to prevent overheating.

• Rated at 1/2 HP with a speed of 3450 RPM.
• Designed with a resilient mounting system and ball bearings.
• Includes an automatic overload protection feature.

Product Highlights

The Trane MOT3072 is suitable for various HVAC applications, offering reliable performance and durability. Its reversible rotation feature makes it versatile for different setups.

Product Information

Standard Information

• Brand: Trane
• MPN: MOT3072

Technical Specifications

• Motor Type: AC
• Horsepower: 1/2
• Input Voltage: 115/208-230V
• Frequency: 60 Hz
• RPM: 3450
• Number of Phases: 1
• Enclosure Type: ODP
• Frame Size: 56
• Bearing Type: Ball
• Rotation: CW / CCW
• Mounting Type: Resilient
• Body Length: 9.36 inches
• Shaft Diameter: 0.625 inches
• Shaft Length: 1.875 inches
• Efficiency: 62%
• Protector Type: Automatic
• Insulation Class: B
• Service Factor: 1.25
• Temperature Rating: 104°F-131°F
• Load Current: 7.4 A
• Keyway Size: 3/16 x 8/85 x 1-3/8 inches
• Number of Shafts: 1
• Number of Speeds: 1
• Standards: CSA, UL
• Technology: Capacitor Start
