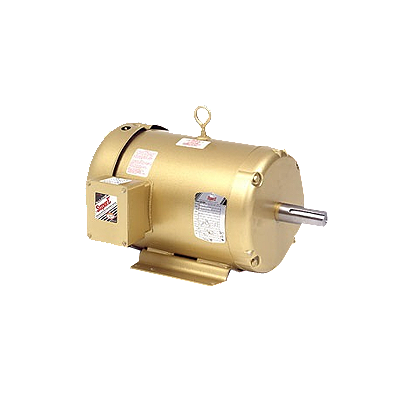

Trane MOT17959 General Purpose Motor 7.5 HP 184T

Product Description

The Trane MOT17959 is a general-purpose electric motor. This motor delivers a powerful performance with a rating of seven and a half horsepower. It operates at 575 volts and is suitable for use with three-phase power at sixty hertz. The motor features a robust 184T frame that allows for rigid base mounting.

• 7.5 HP motor operating at 575V, 60Hz, 3-phase.
• Features a 184T frame and rigid base for mounting.
• Equipped with ball bearings and operates at a speed of 3475 RPM.

Product Highlights

Ideal for various applications, the Trane MOT17959 motor is designed with an open dripproof enclosure ensuring reliability. This motor comes with a harness for easy installation.

Product Information

Standard Information

• Brand: Trane
• Enclosure Type: Open Dripproof

Technical Specifications

• Bearing Type: Ball
• Frequency (Hz): 60
• Horsepower: 7.5
• Insulation Class: F
• Mount: Rigid Base
• Phase: 3
• Rotation: Reversible
• RPM: 3475
• Service Factor: 1.15
• Shaft Diameter (In): 1.125
• Terminal Box Mounting: F1
• Voltage: 575V
