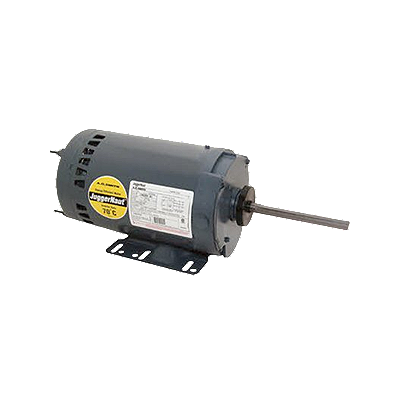

Trane MOT14330 Condenser Fan Motor 1.5 HP

Product Description

The Trane MOT14330 is a 1.5 horsepower condenser fan motor designed for three-phase AC systems. It is suitable for vertical mounting and features a robust rigid base. The motor operates efficiently at 460/200-230 VAC and delivers a speed of 1140 RPM. Equipped with an open air over enclosure, it is rated for inverter duty, ensuring reliable performance in various applications.

• 1.5 HP condenser fan motor
• Operates at 460/200-230 VAC, 1140 RPM
• Inverter duty rated, with a 56 frame and open air over enclosure

Product Highlights

This motor is ideal for cooling systems, providing consistent airflow and sustaining system efficiency.

Product Information

Standard Information

• Brand: Trane
• MPN: MOT14330

Technical Specifications

• Motor Type: AC, Condenser Fan
• HP: 1-1/2
• Voltage: 460V
• Frequency (Hz): 50/60
• Phase: 3
• RPM: 1140
• Frame: 56HZ
• Enclosure Type: Open Air Over
• Mounting Type: Rigid Base
• Rotation: CCW
• Thermal Protector: True
• Number of Speeds: 1
• Load Current (A): 5.8
