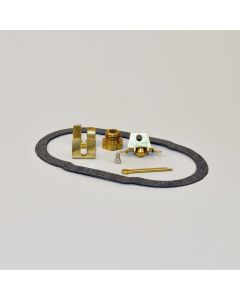

Trane KIT2942 Kit 2942 - Float Mechanism less Float for 66CL & 675 Traps

Product Description

The Trane Kit 2942 is a float mechanism designed for one and one-fourth inch 66CL (15 pound pressure) F&T traps. This mechanism facilitates the drainage of condensate from the trap. It operates through a lever and seat which is secured by screwing the seat into the outlet port of the trap. The float's weight keeps the lever down to close the seat when steam is present. As steam cools and condenses, the trap fills, lifting the float and opening the seat for drainage.

• Float mechanism designed for 1-1/4 inch 66CL (15 pound pressure) F&T traps
• Enables efficient condensate drainage from the trap
• Operates using a lever and seat mechanism

Product Highlights

This kit is essential for maintaining proper function in steam systems.

Product Information

Standard Information

• Brand: Trane
• MPN: KIT2942

Technical Specifications

• Steam Trap Series Repaired: 600 Series, 66 Series
• Steam Trap Model Repaired: 66CL, 675
