Trane J4MXCC005EC6HC Multi-Position Cased Coil

Product Description

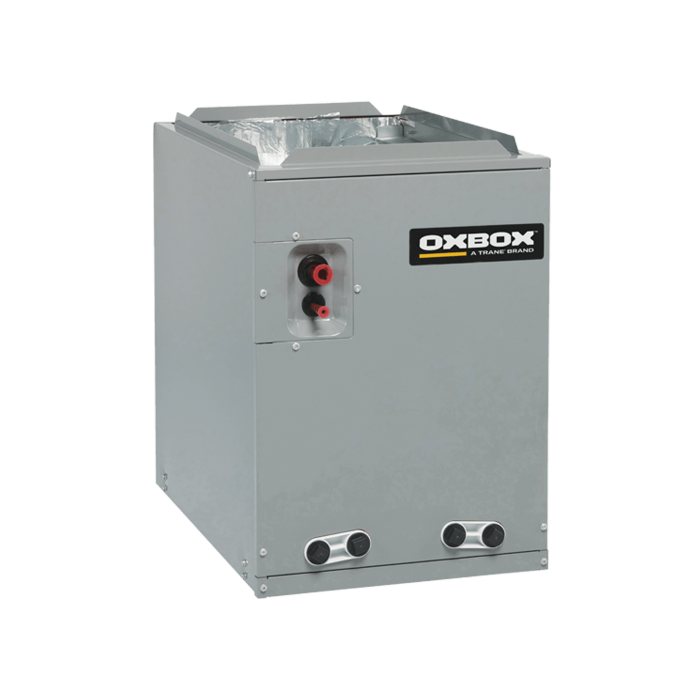

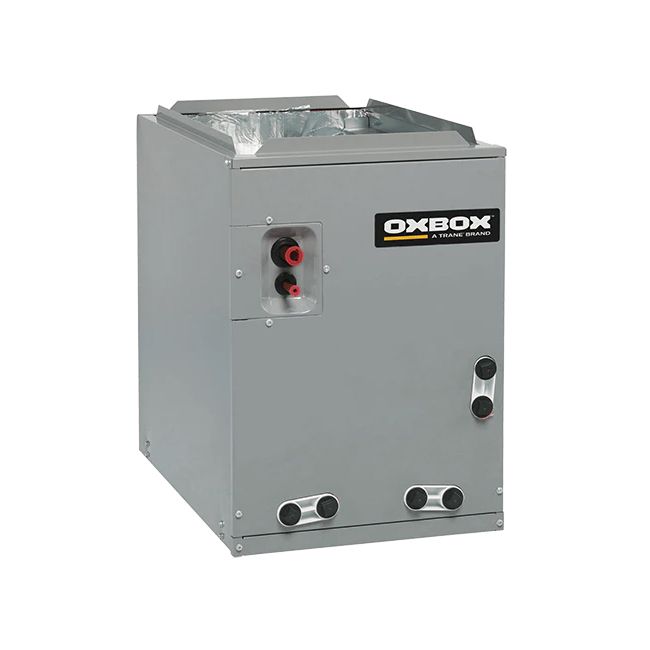

The Trane OxBox J4MXCC005EC6HC is a multi-position cased evaporator coil suitable for various installation orientations including upflow, downflow, or horizontal. This model is compatible with 14/16 SEER and SEER2 systems. The unit has an all-aluminum coil structure for better efficiency and durability, equipped with foil-faced thermal insulation. A factory-installed Flow Control Check Valve (FCCV) is included. Note that some configurations may necessitate separately purchased TXV kits.

• Multi-position installation: upflow, downflow, horizontal.
• Includes factory-installed Flow Control Check Valve.
• Compatible with 14/16 SEER and SEER2 models.

Product Highlights

This cased coil is designed for optimal airflow in home heating and cooling applications.

Product Information

Standard Information

• Brand: Trane
• Model Number: J4MXCC005EC6HC

Technical Specifications

• Refrigerant Type: R-410A
• Suction Valve Size: three-fourth inches
• Liquid Valve Size: three-eighths inches
• Height: twenty inches
• Width: twenty-one inches
• Depth: twenty-one inches
• Total Shipping Weight: fifty-seven pounds
• Parts Warranty: ten years
• Compressor Warranty: ten years
• Air Flow: Multi-Position
