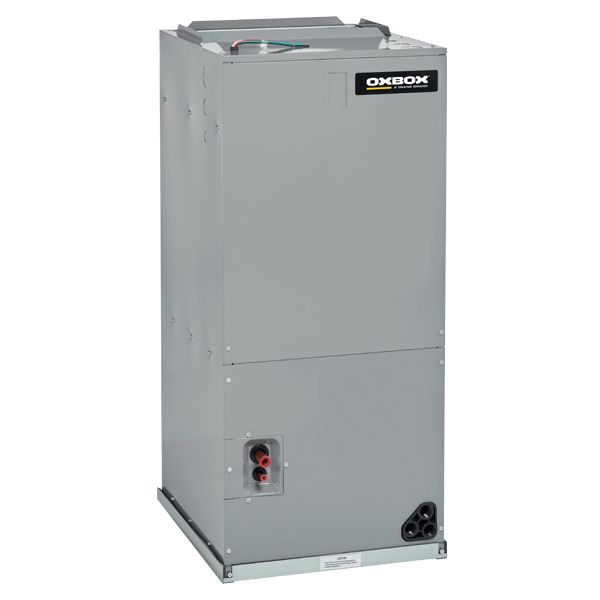

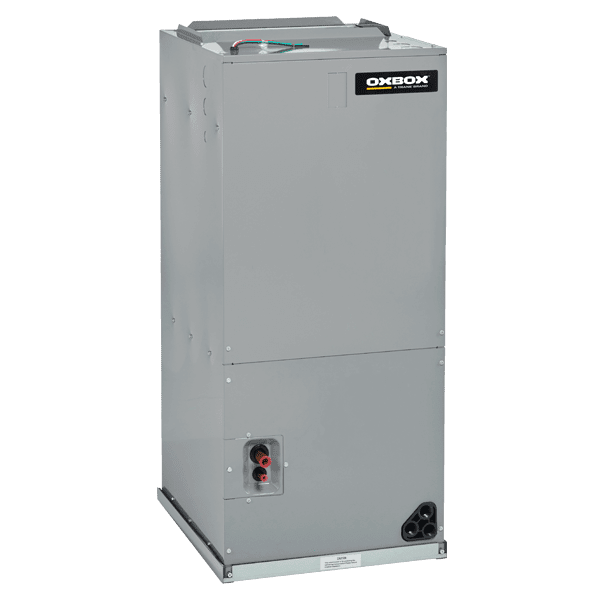

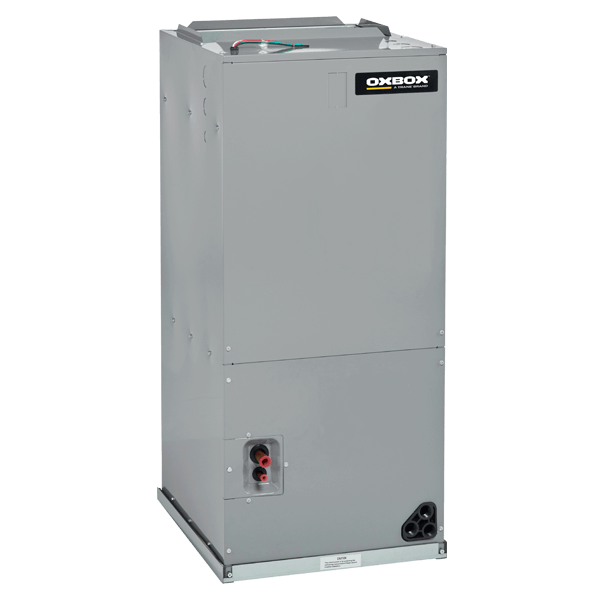

TRANE J4AH4P42A1C00AA 3.5 Ton Air Handler

Product Description

The TRANE J4AH4P42A1C00AA is a three and a half ton air handler for air circulation. This unit is made with an all-aluminum coil and features a painted galvanized steel cabinet. It allows for multiple airflow designs, making it suitable for vertical upflow, downflow, and horizontal installations. It is designed for indoor use and works with R-410A refrigerant. The air handler features dual drainage spouts and a removable front panel, facilitating easy maintenance.

• Compatible with 13, 14, and 16 SEER models.
• Convertible installation options for various configurations.
• Durable galvanized steel construction.

Product Highlights

This air handler provides effective temperature regulation for residential and commercial applications.

Product Information

Standard Information

• Brand: TRANE
• Model Number: J4AH4P42A1C00AA

Technical Specifications

• Tonnage: 3.5 Tons
• Cooling Capacity: 42000 BTU
• Refrigerant Type: R-410A
• Motor Type: PSC
• Blower Motor Type: Multi-Speed
• Air Flow (CFM): 1400
• Maximum Air Flow: 1780 CFM
• Minimum Air Flow: 792 CFM
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• MCA (AHU): 2.11
• Liquid Line Size (OD): 0.375 Inches
• Suction Line Size (OD): 0.75 Inches
• Product Dimensions: 24 Inches (Depth) x 22 Inches (Width) x 54.5 Inches (Height)
• Net Weight: 159 Pounds
• Total Shipping Weight: 177 Pounds
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Installation Location: Indoor
• AHRI Certified: Yes
• ETL Listed: Yes
