Trane FUS2280-1 Time Delay Relay Fuse 500V 20A

Product Description

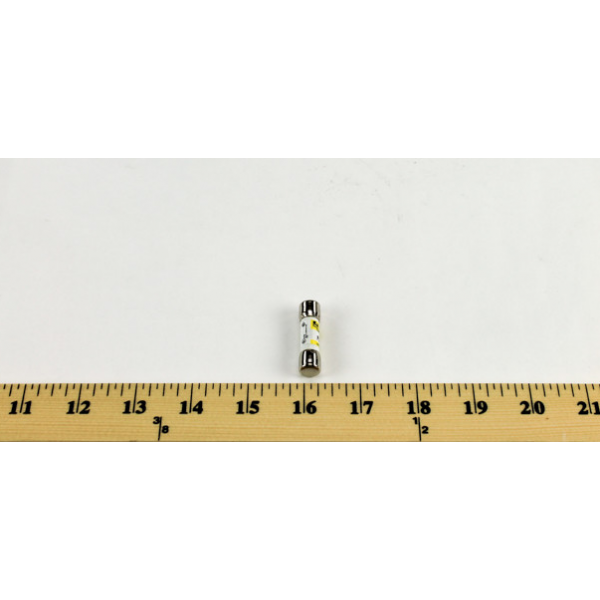

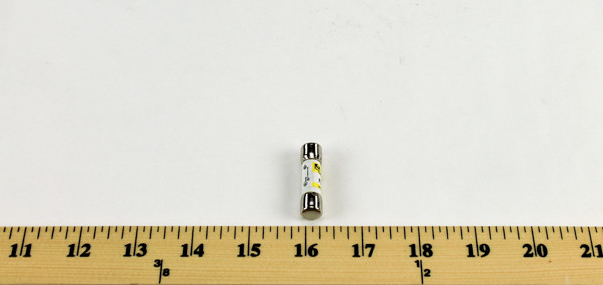

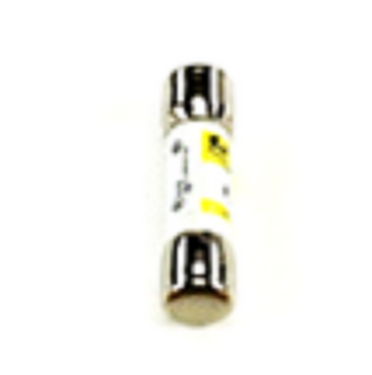

The Trane FUS2280-1 is a time delay relay fuse specifically designed for Trane HVAC systems. This component operates as a twenty-amp fuse and includes a time delay switch, which helps manage short-duration power transients during normal operation. This minimizes the risk of a power failure. The product features a melamine body construction, a nickel-plated cap, and clip-style terminals, making it reliable and efficient. The fuse is compact, with a length of one point five inches and a height of zero point four inches.

• Functions as a twenty-amp fuse and time delay switch.
• Features clip-style terminals for secure connections.
• Constructed from melamine with a nickel-plated cap for durability.

Product Highlights

This time delay relay fuse is vital for HVAC systems, ensuring steady operation and preventing outages.

Product Information

Standard Information

• Brand: TRANE
• MPN: FUS2280-1

Technical Specifications

• Body Style: Cartridge Blade
• Class: Midget
• Current Rating: 20A
• Diameter: 0.41 inches
• Finish: Nickel Plated Cap
• Interrupt Rating: 10 KA at 500V AC/300V DC
• Material: Melamine Body, Copper Alloy Cap
• Mounting Style: Holder
• Resistance: 4 mOhms
• Size: 10 x 38 mm
• Standards: CSA, UL RoHS
• Temperature Rating: -67°F to 257°F
• Terminal Type: Clip
• Voltage: 500V
• Height: 0.4 inches
• Length: 1.5 inches
