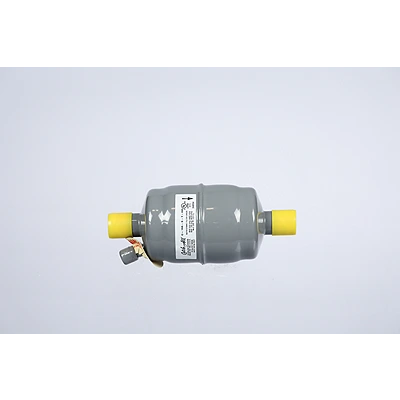

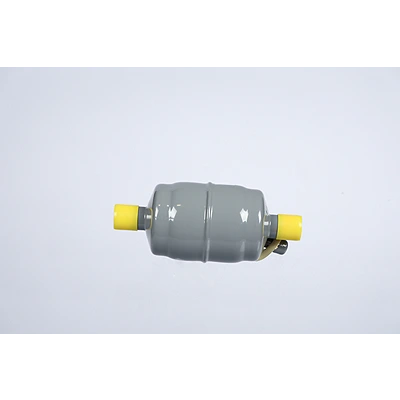

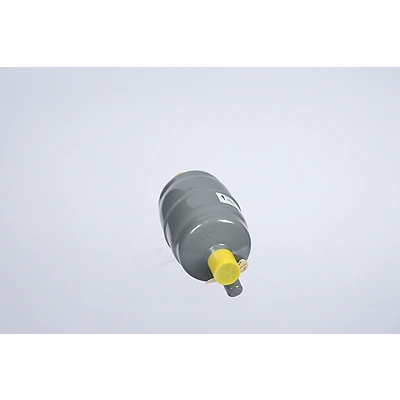

Trane DHY01116 Suction Line Filter Drier 3/4 Inch Odf

Product Description

The TRANE DHY01116 is a suction line filter drier designed for refrigeration and air conditioning systems. It uses a sealed, solid core design rated at 16 cubic inches to capture moisture, acid, and particulate contamination from the suction side of the refrigerant circuit. The 3/4 inch ODF solder connections provide a secure, leak-resistant joint when properly brazed. At 7.88 inches in length, this compact unit fits standard service access points. HVAC technicians install it during system cleanups, burnout recovery procedures, or as a preventive measure following compressor replacement.

This filter drier is suited for residential and light commercial split systems and packaged units where suction line filtration is required. It is particularly common in burnout jobs, where acidic contamination must be removed before a replacement compressor is placed into service. The solid core construction provides high-capacity filtration and moisture removal throughout the suction line. Installation is performed by licensed HVAC refrigeration technicians working with sealed refrigerant systems.

Key Features

• Solid core design delivers high-capacity moisture and acid removal from the suction line
• 16 cubic inch core size handles significant contamination loads during burnout recovery
• 3/4 inch ODF solder connections for secure brazed installation
• Sealed construction protects the desiccant core from ambient moisture prior to installation
• Compact 7.88 inch body fits standard equipment clearances

Compatibility

Designed as an OEM-style suction line filter drier replacement for residential and light commercial refrigerant systems using 3/4 inch ODF suction line connections.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under EPA Section 608 regulations. Recover all refrigerant and confirm the system is fully depressurized before cutting into the suction line. Use a nitrogen purge during brazing to prevent internal oxidation scaling. Replace the liquid line filter drier at the same time to ensure full system protection.

Technical Specifications

• Core Size: 16 cubic inches
• Inlet Size: 3/4 inch ODF
• Connection Type: Solder
• Actual Length: 7.88 inches
• Core Construction: Solid Core, Sealed
• Shipping Weight: 1.45 pounds
• Sub Brand: Catch-All

Standard Information

• Brand: TRANE
• Manufacturer Part Number: DHY01116
