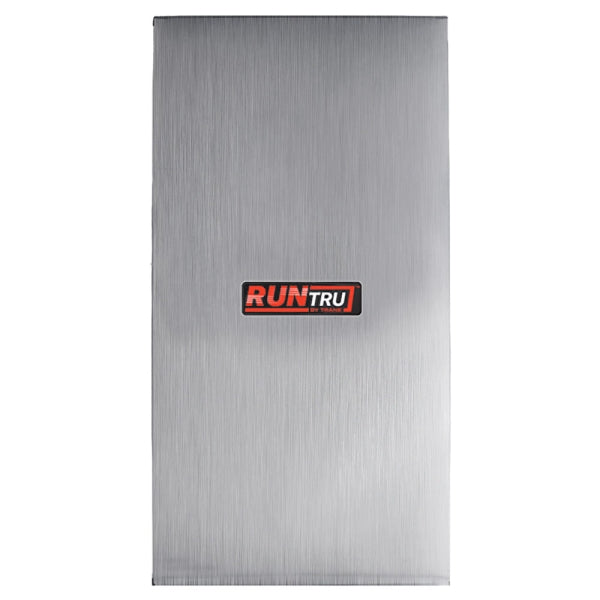

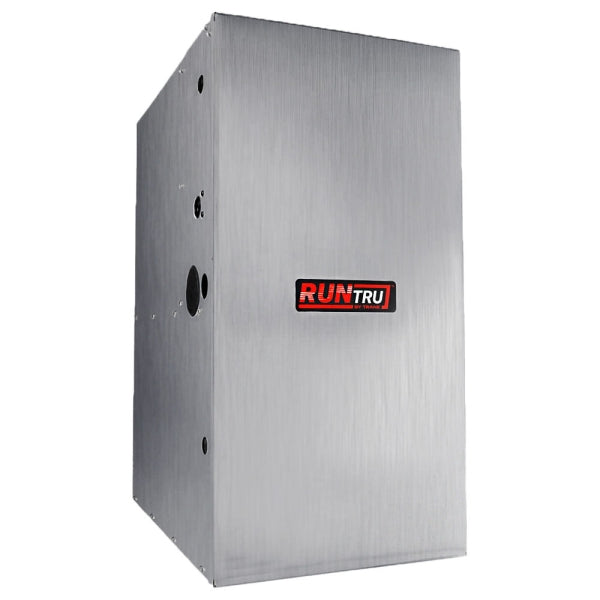

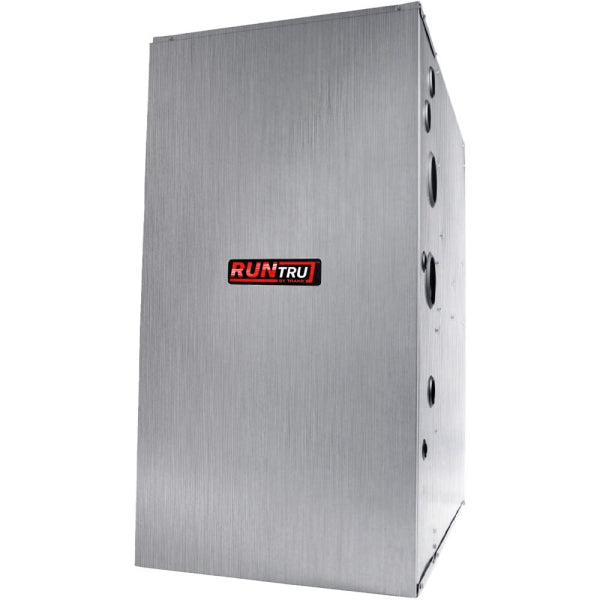

Trane A951X100CD5SA Downflow Condensing Gas Furnace 100000 Btu/h 95% Afue Ecm Multi Speed

Product Description

The Trane A951X100CD5SA is a dedicated downflow, single-stage condensing gas furnace rated at 100,000 BTU/h input with a 95% AFUE efficiency rating. It uses an ECM blower motor with multiple speed settings to deliver consistent airflow while reducing energy consumption during blower operation. This furnace is designed for residential heating applications and is compatible with both natural gas and propane. Licensed HVAC technicians install and commission this unit as part of a forced-air heating system or matched split system. The ENERGY STAR certification confirms the unit meets federal efficiency criteria for condensing gas furnaces.

The A951X100CD5SA is engineered for downflow-only installations, meaning the supply air discharges from the bottom of the cabinet. This configuration is common in homes where the ductwork runs beneath the unit, such as installations in closets over a crawl space or on a main floor above a basement supply plenum. The unit belongs to the RunTru by Trane A951X furnace family and carries an ENERGY STAR certification dated for market availability beginning July 2019. It is suited for residential single-phase electrical service.

Key Features

• 100,000 BTU/h input capacity for whole-home heating in cold climates
• 95% AFUE condensing efficiency, ENERGY STAR certified
• ECM blower motor with multiple speed settings for efficient airflow control
• Single-stage heating operation with integrated furnace control board
• Downflow-only cabinet configuration for under-unit supply air discharge
• Compatible with natural gas and propane fuel sources

Compatibility

Designed for downflow-only ducted residential heating systems. The A951X100CD5SA is part of the RunTru by Trane A951X condensing furnace family. Confirm cabinet width and electrical requirements against the existing installation before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installer guide. Shut off all gas supply and electrical power to the system before beginning any service or installation work. The unit requires a dedicated condensate drain connection appropriate for a condensing appliance. Venting must comply with applicable codes for direct-vent or two-pipe condensing furnace installations.

Technical Specifications

• Heating Input Capacity: 100,000 BTU/h
• AFUE Efficiency: 95%
• Motor Type: ECM
• Number of Speeds: Multi Speed
• Configuration: Downflow Only
• Fuel Type: Natural Gas, Propane
• Phases: 1
• Certification: ENERGY STAR
• Cabinet Width: 21 inches
• Product Length: 28 inches

Standard Information

• Brand: Trane
• Manufacturer Part Number: A951X100CD5SA
