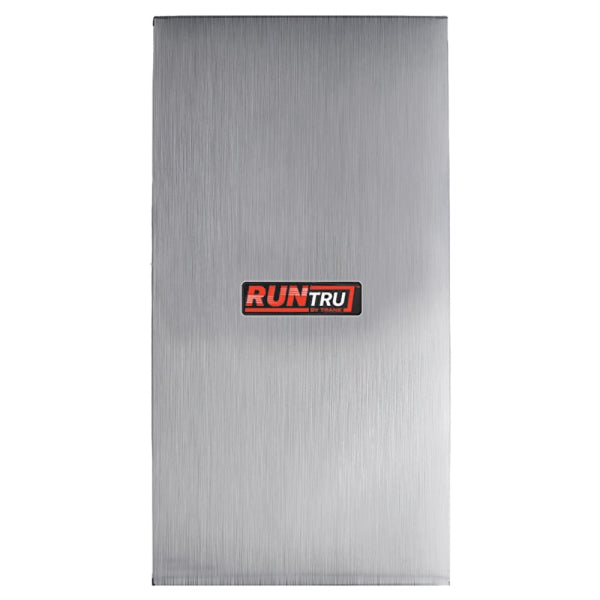

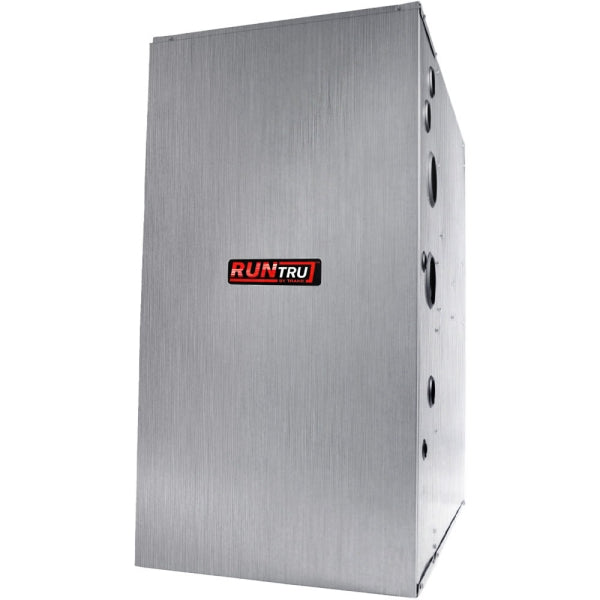

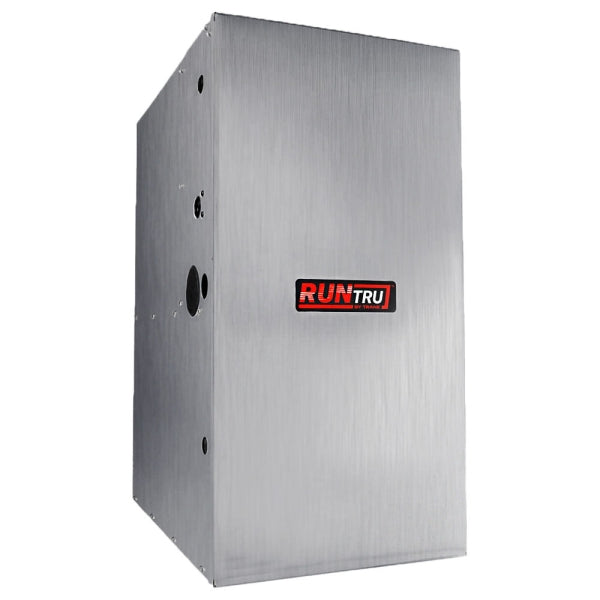

Trane A951X060BD3SA Downflow Single Stage Condensing Gas Furnace 60000 Btu 96 Percent Afue

Product Description

The Trane A951X060BD3SA is a dedicated downflow, single-stage condensing gas furnace rated at 60,000 BTU/h input and 96 percent AFUE efficiency. Part of the RunTru by Trane product line, this unit is designed for residential forced-air heating systems where a downflow cabinet orientation is required. It operates on natural gas or LP gas and uses a multi-speed blower motor to match airflow to system demand. The 17.5-inch cabinet width fits standard residential duct configurations. Licensed HVAC technicians handle installation, commissioning, and any gas-side service work on this equipment.

This furnace is intended for dedicated downflow installations in residential applications. The downflow-only cabinet orientation directs conditioned air downward into the supply duct, making it suited for installations where the air handler sits above a crawl space or basement duct system. It is compatible with direct-vent and non-direct-vent venting arrangements per the applicable installation guide. When installed as part of a split system, it pairs with a matching evaporator coil and outdoor condensing unit to provide full heating and cooling capability.

Key Features

• 60,000 BTU/h input capacity with 96 percent AFUE single-stage condensing operation
• Dedicated downflow cabinet — not field-convertible to upflow or horizontal
• Multi-speed blower motor for variable airflow matching
• 17.5-inch cabinet width fits standard residential duct openings
• Compatible with natural gas and LP gas fuel sources
• Direct-vent and non-direct-vent venting configurations supported

Compatibility

The A951X060BD3SA has been listed as a component in a matched system alongside the A4AC3036D1 outdoor condensing unit and the 4MXCB006AC6HCB evaporator coil. Verify full system compatibility using Trane or RunTru system matching guidelines before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the International Fuel Gas Code (IFGC), and the manufacturer installer guide. Shut off gas supply and disconnect electrical power before servicing any components. Downflow installations require proper duct sealing at the supply plenum and a code-compliant condensate drain arrangement. Do not attempt to field-convert this cabinet to an upflow or horizontal orientation.

Technical Specifications

• Heating Capacity (Input): 60,000 BTU/h
• AFUE Efficiency: 96 percent
• Configuration: Downflow Only
• Staging: Single Stage
• Blower Motor: Multi-Speed
• Cabinet Width: 17.5 inches
• Fuel Type: Natural Gas or LP Gas
• Voltage: 120 volts
• Venting: Direct Vent or Non-Direct Vent
• Product Line: RunTru by Trane

Standard Information

• Brand: Trane
• Manufacturer Part Number: A951X060BD3SA
