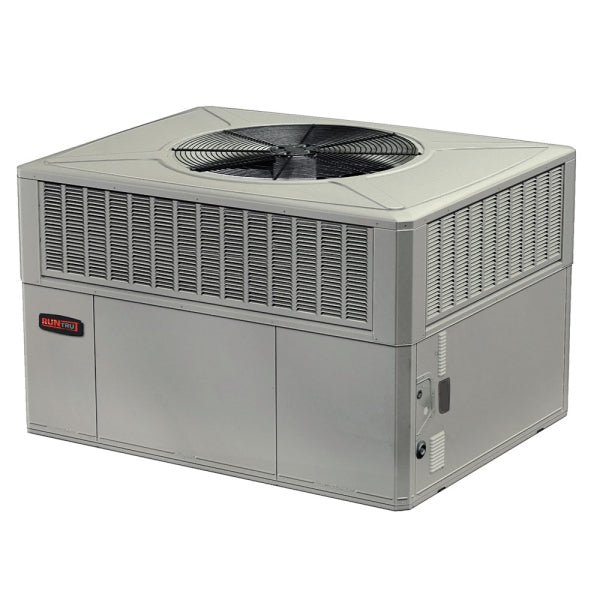

Trane A5PH3060A1000A Single Packaged Heat Pump 5 Ton 13.4 Seer Convertible R-454B 208-230V

Product Description

The Trane A5PH3060A1000A is a 5-ton single packaged heat pump designed for residential and light-commercial applications. It delivers 60,000 BTU/h of cooling capacity at a 13.4 SEER efficiency rating and operates on R-454B refrigerant, a lower-GWP alternative to R-410A. The unit uses a scroll compressor and is configured as a convertible, meaning it supports both horizontal and downflow duct connections from a single cabinet. Heating and cooling functions are self-contained, eliminating the need for a separate indoor coil or air handler. Licensed HVAC technicians handle installation and startup.

This packaged heat pump is suited for residential rooftop or ground-level installations where a self-contained single-cabinet system is preferred. The convertible configuration makes it adaptable to slab-mount or curb-mount installations with horizontal or vertical duct arrangements. It is part of the A5PH3 product family, which covers 2 to 5 ton capacities in a common platform. An optional fully modulating economizer accessory is available for field installation, incorporating a 0 to 100 percent fresh-air damper, damper drive motor, fixed dry-bulb enthalpy control, and low-voltage pigtails.

Key Features

• 60,000 BTU/h cooling capacity in a self-contained single-cabinet design
• 13.4 SEER efficiency rating
• R-454B refrigerant — lower global-warming-potential alternative to R-410A
• Scroll compressor for reliable operation and quieter performance
• Convertible configuration supports horizontal or downflow duct connections
• Compatible with optional fully modulating economizer field accessory (0-100 percent fresh air)
• 208-230/1/60 electrical supply — single-phase power

Compatibility

The A5PH3060A1000A is part of the Trane A5PH3 single packaged heat pump platform, available in 2 to 5 ton sizes. It accepts the field-installed fully modulating economizer accessory designed for this product family. Verify duct configuration and electrical service requirements before ordering accessories or replacement components.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation, operation, and maintenance manual. Disconnect and lock out all electrical power before servicing the unit. Because this unit uses R-454B, technicians must use equipment rated and listed for A2L mildly flammable refrigerants and follow all applicable safety procedures. Verify that the supply voltage matches the unit nameplate rating before energizing.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• Efficiency: 13.4 SEER
• Refrigerant: R-454B
• Voltage: 208-230 volts / 1-phase / 60 Hz
• Compressor Type: Scroll
• Configuration: Convertible (horizontal or downflow)
• Connection Size: 3/4 inch
• Connection Type: FNPT
• Nominal Capacity: 5 Ton

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PH3060A1000A
