Trane A5PA3024A1000 Packaged Air Conditioner Unit 24000 Btu 13.4 SEER2 R-454B 208-230V Downflow Horizontal with Heat Strip

Product Description

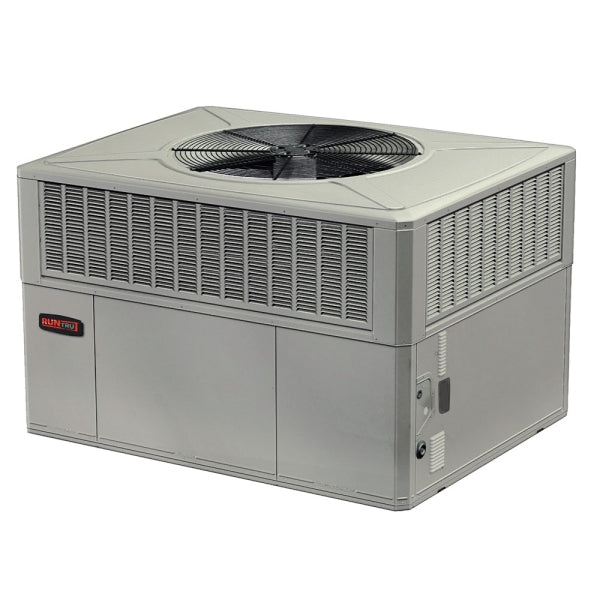

The Trane A5PA3024A1000 is a 2-ton single-packaged cooling unit with electric heat strip, rated at 24,000 BTU/h and 13.4 SEER2. Part of the RunTru by Trane A5PA3 series, this self-contained unit houses the compressor, outdoor coil, indoor coil, and air handler in a single cabinet, simplifying installation on rooftops or ground-level pads. The unit uses R-454B refrigerant, operates on 208-230V/1-phase/60Hz power, and delivers 820 CFM of indoor airflow. It is rated at 10.6 EER2 and draws 1.98 kW at full cooling load. Licensed HVAC technicians install this unit in residential and light-commercial applications where a single-point connection and compact footprint are priorities.

The A5PA3024A1000 is configured for downflow and horizontal discharge, making it well suited for rooftop installations with ductwork dropping directly into the conditioned space, or for horizontal duct connections on ground-mounted pads. The unit is designed for multiposition applications where space constraints or building layout favor an all-in-one packaged design over a split system. The integrated electric heat strip eliminates the need for a separate furnace or air handler, reducing equipment count and simplifying commissioning. This unit fits residential new-construction and replacement projects where a packaged platform is specified.

Key Features

• 24,000 BTU/h cooling capacity at 13.4 SEER2 efficiency rating
• R-454B refrigerant — low global-warming-potential alternative to R-410A
• Scroll compressor rated at 10.3 RLA / 60.2 LRA on 208-230/1/60
• Spine-Fin outdoor coil construction with 2 rows and 24 fins per inch
• 820 CFM indoor airflow with 1/12 HP indoor fan motor at 825 RPM
• Integrated electric heat strip for single-package heating and cooling
• Sound power rating of 66.6 dB(A) for relatively quiet packaged-unit operation

Compatibility

Designed as a self-contained OEM packaged unit within the RunTru by Trane A5PA3 series. Compatible with 208-230V/1-phase/60Hz electrical service. Consult the unit submittal data and local equipment schedule to confirm duct configuration, circuit sizing at 25 amps, and heat-strip capacity match for the application.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, NEC requirements, and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing or connecting the unit. Because this unit is pre-charged with R-454B, technicians must use refrigerant recovery equipment and gauges rated for mildly flammable A2L refrigerants per applicable safety standards. Verify that the supply circuit is protected at the correct ampacity and that duct connections are sealed and supported before startup.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Nominal Tonnage: 2 tons
• SEER2: 13.4
• EER2: 10.6
• Refrigerant: R-454B
• Voltage / Phase / Frequency: 208-230V / 1-phase / 60Hz
• Power Connection: 25 amps
• Power Input: 1.98 kW
• Compressor Type: Scroll
• Compressor RLA / LRA: 10.3 A / 60.2 A
• Indoor Airflow: 820 CFM
• Indoor Fan Motor: 1/12 HP at 825 RPM
• Indoor Fan FLA / LRA: 0.54 A / 0.82 A
• Outdoor Coil Type: Spine-Fin
• Outdoor Coil Rows / FPI: 2 rows / 24 fins per inch
• Sound Power Rating: 66.6 dB(A)
• Discharge Configuration: Downflow / Horizontal
• Product Series: A5PA3

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PA3024A1000
