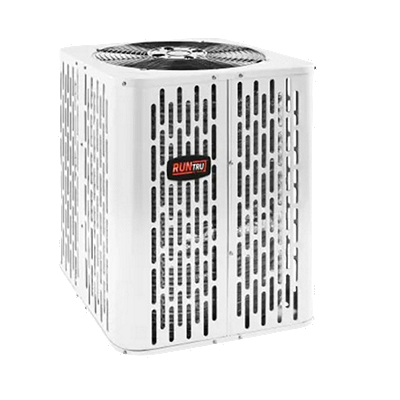

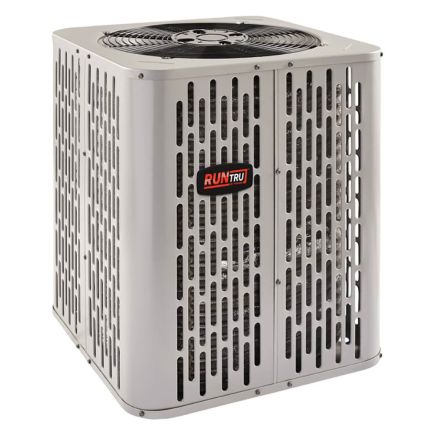

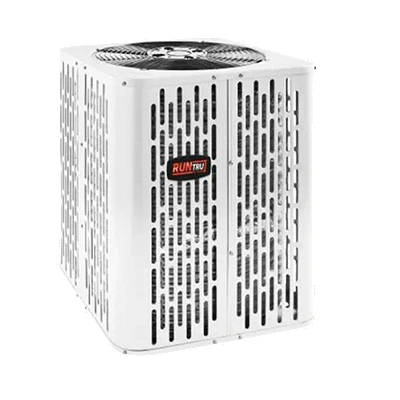

Trane A5AC4030A1000 Split System Air Conditioner 30000 Btu/h 2.5 Ton 14.3 SEER2 R-454B Condensing Unit

Product Description

The Trane A5AC4030A1000 is a single-stage, split-system air conditioning condensing unit rated at 30,000 BTU/h (2.5 tons) with a 14.3 SEER2 efficiency rating. It operates on R-454B refrigerant and is built under the RunTru by Trane product line, targeting residential cooling applications where reliable, code-compliant performance is required. The unit runs on a 200-230V single-phase 60 Hz power supply and uses a rotary compressor. Licensed HVAC technicians install this condensing unit as the outdoor component of a matched split system, pairing it with a compatible indoor air handler or coil to complete the cooling circuit.

This condensing unit is suited for residential split-system installations where a 2.5-ton cooling capacity meets the calculated load. It is designed as part of the RunTru by Trane product family, which targets cost-effective replacement and new-construction residential applications. The unit carries a 14.3 SEER2 efficiency rating, meeting current federal minimum efficiency standards for single-phase residential cooling equipment. Installation is performed by a licensed HVAC contractor as part of a matched outdoor-indoor system configuration.

Key Features

• 30,000 BTU/h cooling capacity (2.5 tons) for residential split-system applications
• 14.3 SEER2 efficiency rating meets current federal minimum standards
• R-454B refrigerant — lower global warming potential than R-410A
• Rotary compressor with single-stage cooling operation
• 200-230V single-phase 60 Hz power supply
• A-weighted sound power level of 73 dB(A) rated per AHRI Standard 270-2008

Compatibility

Designed as an OEM split-system condensing unit for use with a compatible RunTru by Trane or Ameristar by American Standard indoor air handler or coil matched for R-454B refrigerant and 2.5-ton capacity. Consult Trane product matching documentation to confirm indoor unit compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes, NEC requirements, and the manufacturer installation manual. Disconnect and lock out all electrical power to the system before handling refrigerant connections or electrical components. This unit uses R-454B refrigerant, which requires certified refrigerant handling equipment and EPA Section 608 certification. Do not mix refrigerant types or use R-410A service equipment without verifying compatibility.

Technical Specifications

• Cooling Capacity: 30,000 BTU/h (2.5 tons)
• SEER2 Rating: 14.3
• EER Rating: 11.7
• Refrigerant Type: R-454B
• Compressor Type: Rotary
• Power Supply: 200-230V / 1-phase / 60 Hz
• Fuse Rating: 25.0 amps
• Height: 36.625 inches
• Width: 29.75 inches
• Depth: 19.75 inches
• Weight: 184 pounds
• Sound Power Level: 73 dB(A) per AHRI Standard 270-2008
• Product Family: RunTru by Trane

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC4030A1000
