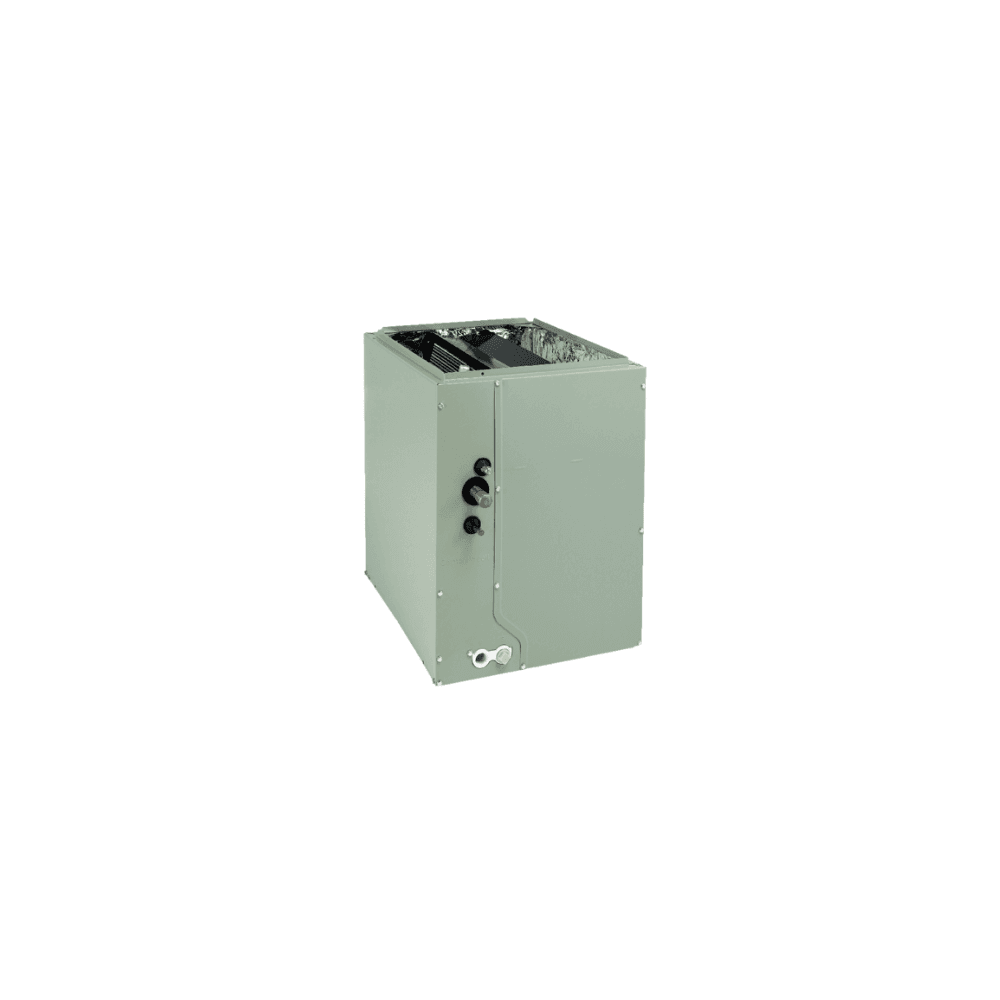

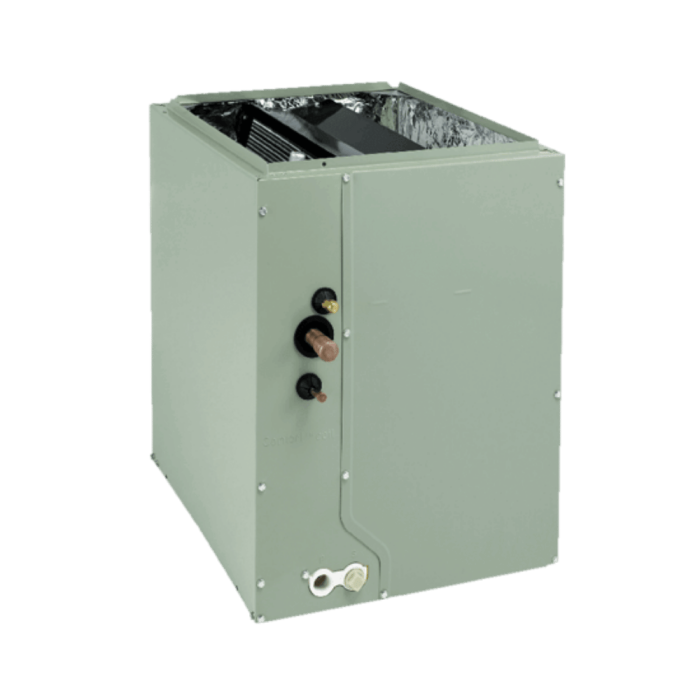

Trane 5TXCB006AS3HC Cased Evaporator Coil 42000-48000 Btu/h 3.5-4.0 Ton Multi-position R-454B Split System

Product Description

The Trane 5TXCB006AS3HC is a cased, multi-position evaporator coil designed for residential split-system air conditioning and heat pump applications. Rated at 42,000 to 48,000 BTU/h across a 3.5 to 4.0 ton capacity range, this coil is factory-configured for use with R-454B refrigerant and ships with a factory-installed non-bleed TXV. The all-aluminum plate-fin construction resists rust and corrosion across the full coil assembly. The B-cabinet width of 17.5 inches fits standard airflow openings, and the four-way multi-position design supports upflow, downflow, and horizontal installations. Licensed HVAC technicians install this coil as the indoor heat-exchange component in a split system paired with a matched outdoor condensing unit or heat pump.

This coil is intended for residential split-system installations requiring a 3.5 to 4.0 ton capacity in upflow, downflow, or horizontal orientation. The 17.5-inch cabinet width suits B-cabinet furnace and air handler configurations. Because the coil is rated for R-454B, an A2L mildly flammable refrigerant, it is suited for new construction and replacement projects where equipment must meet current low-global-warming-potential refrigerant requirements. The factory-installed non-bleed TXV provides refrigerant metering without requiring field assembly of a separate metering device.

Key Features

• All-aluminum plate-fin coil construction resists rust and corrosion
• Factory-installed non-bleed TXV eliminates field metering device assembly
• Four-way multi-position design supports upflow, downflow, and horizontal installation
• Compatible with R-454B refrigerant for current low-GWP system requirements
• Two-piece non-corrosive inner coil panels allow interior fin cleaning without full removal
• Factory pressure-washed and dried to minimize water blow-off during initial operation

Compatibility

Designed for use in residential split-system air conditioning and heat pump applications requiring a 3.5 to 4.0 ton cased evaporator coil rated for R-454B refrigerant in a B-cabinet configuration.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Shut down and isolate the refrigerant circuit completely before disconnecting or connecting any refrigerant lines. Because R-454B is classified as an A2L mildly flammable refrigerant, follow all applicable local codes and manufacturer guidelines for handling and ventilation during brazing. Refrigerant line connections are brazed at 7/8-inch gas and 3/8-inch liquid line sizes; verify line set sizing against the outdoor unit specifications before beginning work.

Technical Specifications

• Cooling Capacity: 42,000-48,000 BTU/h (3.5-4.0 Ton)
• Refrigerant: R-454B
• Refrigerant Connection Type: Brazed
• Gas Line Size: 7/8 inches
• Liquid Line Size: 3/8 inches
• Metering Device: Non-Bleed TXV (factory installed)
• Coil Type: Aluminum Plate-Fin
• Cabinet Width: 17.5 inches
• Airflow Configuration: Multi-Position 4-Way (Upflow, Downflow, Horizontal)
• Drain Connection: 3/4 inches NPT
• Actual Weight: 55 pounds
• Actual Width: 21 inches

Standard Information

• Brand: Trane
• Manufacturer Part Number: 5TXCB006AS3HC
