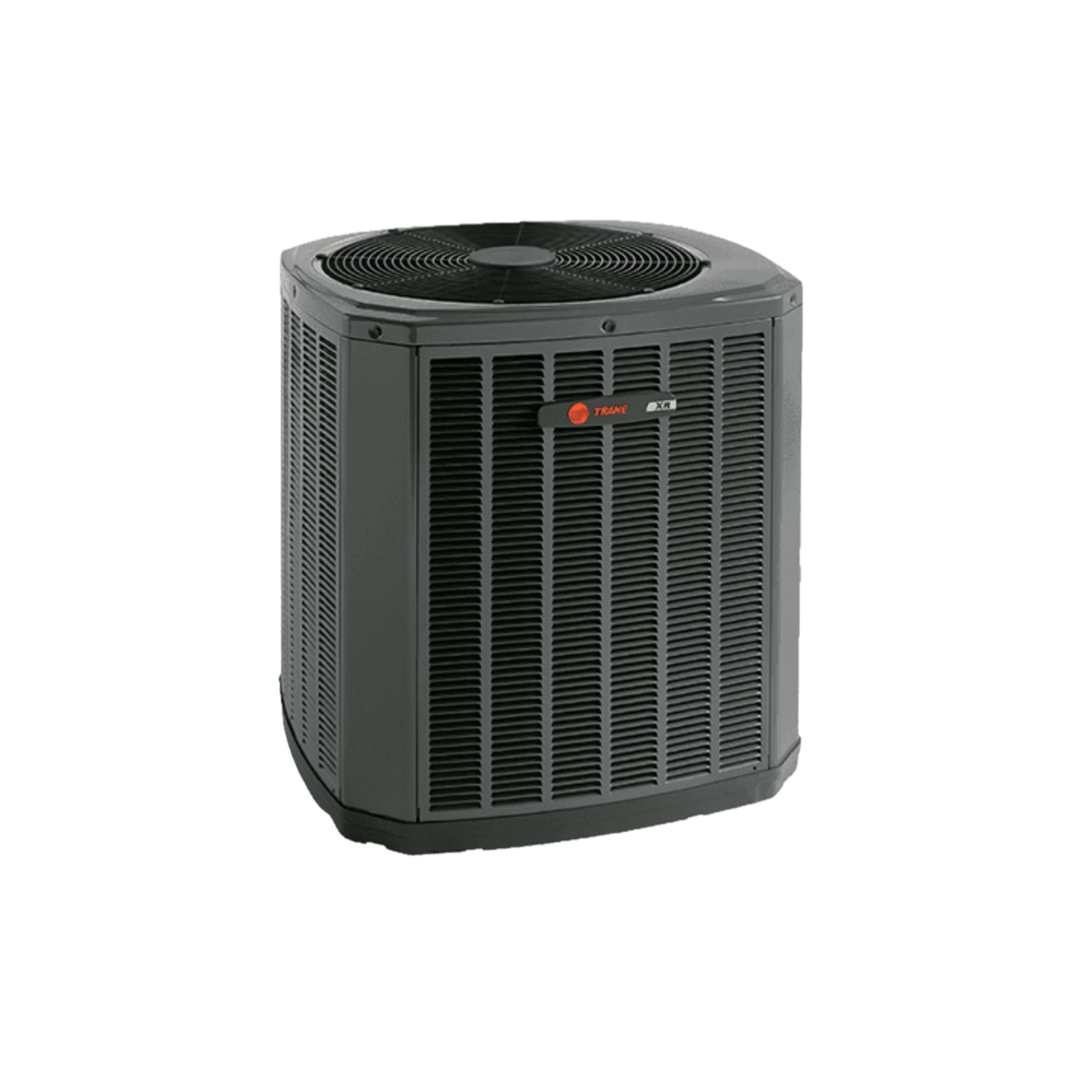

Trane 5TWR4048A1000A Choice 4T 14 SEER2 Single Stage Heat Pump

Product Description

The Trane 5TWR4048A1000A heat pump delivers 48,000 BTU (4T) of performance for heating and cooling. Designed with a heavy gauge, galvanized steel casing and weather-resistant powder paint finish. Features a Climatuff compressor with internal over temperature and pressure protection. Compatible with existing accessories and kits.

• Optimized for maximum performance using R-454B refrigerant
• Features a Spine Fin coil protected on all four sides by louvered panels
• Equipped with a factory-supplied, field-installed liquid line drier

Product Highlights

This Trane heat pump provides reliable comfort and long-term energy savings, engineered to perform in all seasons.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TWR4048A1000A

Technical Specifications

• Outdoor Unit: Compressor LRA: 95
• Outdoor Unit: Compressor Type: Scroll
• Outdoor Unit: Fan Motor FLA: 2.8
• Outdoor Unit: Refrigerant Control: Expansion Valve
• Power Supply: 208/230 V/1 Phase/60 Hz
• Refrigerant Charge lbs: 8 lbs-9 oz
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Rows - Fins per Inch: 24
• Tonnage: 4
• Tube Size (in): 3/8
• BTU Cooling Rating: 48,000 Btu/hr
• Br. Cir. Prot. Rating. - Max (Amps): 25
• Charging Specification Subcooling: 10 deg F
• Coil Type: Spine Fin
• Compressor Insulation/Sound Blanket: No
• Compressor RLA: 18.1
• Compressor Stages: Single Stage
• Compressor Sump Heater Factory Installed: No
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Elec Volts: 208/230 V
• Factory Charged: Yes
• Factory Installed Start Components: BAYKSKT263
• Family Description: R-454B Heat Pump
• Full Load Amperage (FLA): 1.3
• HSPF2 Range: 7.5
• Line Size - Liquid (in): 5/16
• Line Size - Suction (In): 7/8
• MCA: 25
• Max Breaker Size, Without Electric Heater (Amps): 40
• Max Fuse Size: 40 amps
• Model: 5TWR4
• Motor Speed: 850 rpm
• Noise Level: 72 dba
• Number of Outdoor Fan Used: 1
• Number of Stages: Single
• Outdoor Coil-FPI: 24
• Outdoor Coil-Face Area sq-ft: 30.8
• Outdoor Coil-Rows: 1
• Outdoor Coil-Tube Size (In): 3/8
• Outdoor Fan - CFM: 4992
• Outdoor Fan - Diameter In: 27.5
• Outdoor Fan - Drive: Direct
• Outdoor Fan - HP: 1-1/3
• Outdoor Fan - Speed: 850
• Outdoor Fan - Type: Propeller
• Phase: 1.0 ph
• Product Family Series: Choice
• SEER Rating: 15.2
• SEER2 Range: 7.5
• Series: 14 Single Stage Heat Pump
• Stage: 1
• Volts: 208/230 V
• Condenser Model: 5TWR4048A1000A
• Size/Tonnage: 4-Ton
• Cooling Efficiency (SEER2): 14.3
• Application: Heat Pump
