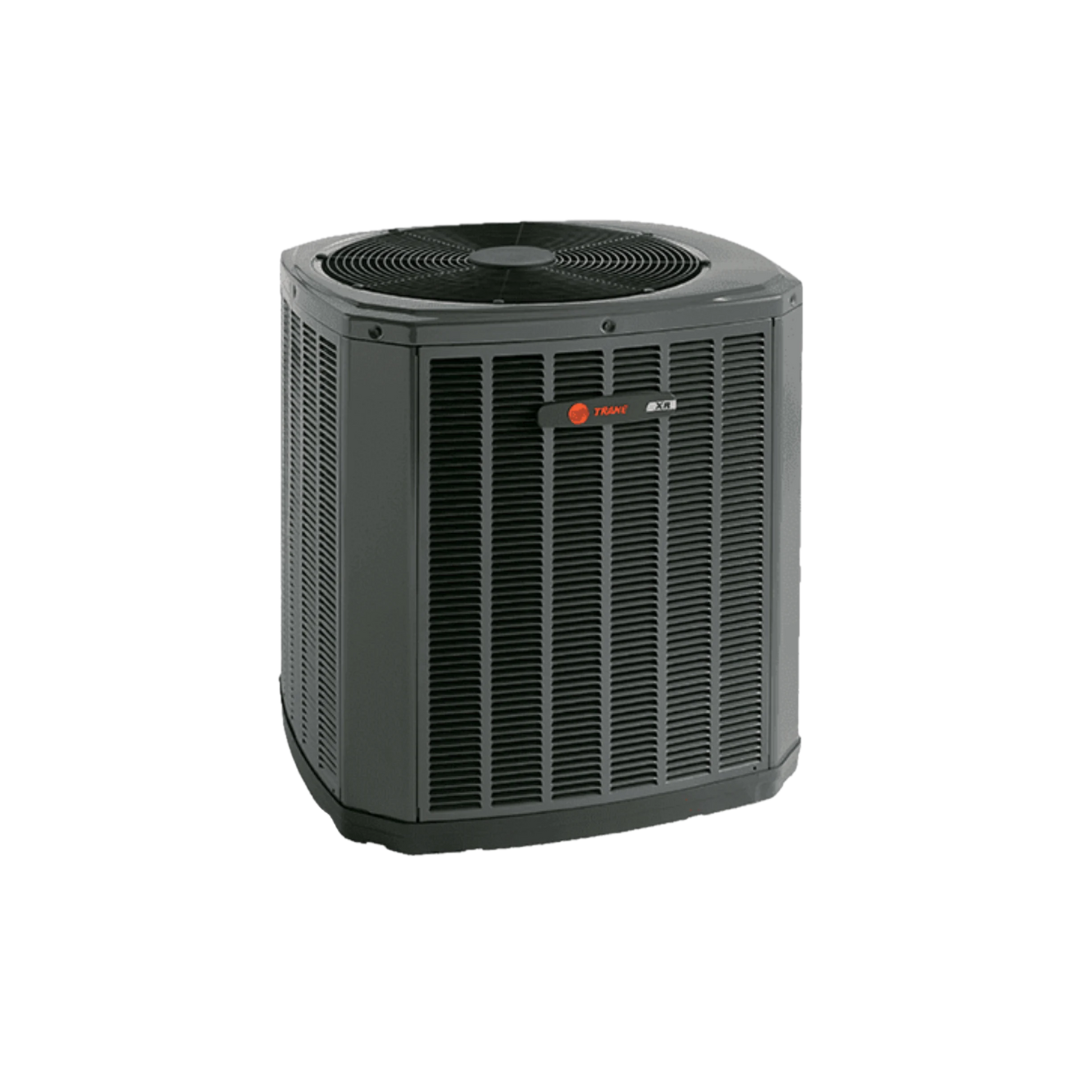

Trane 5TWR4030A1000A Choice 2.5T 14 SEER2 Single Stage Heat Pump

Product Description

The Trane 5TWR4030A1000A, Choice, 2.5T, 14 SEER2, single stage heat pump delivers 30,000 BTU of heating and cooling. Optimized for use with R-454B refrigerant, this unit features a heavy gauge, galvanized steel casing with a weather-resistant powder paint finish. The compressor includes internal over temperature and pressure protection.

• Utilizes R-454B refrigerant for efficient operation.
• Features a durable Climatuff compressor for long-lasting performance.
• Constructed with an all-aluminum spine fin coil for corrosion resistance.

Product Highlights

This Trane heat pump provides reliable temperature control and energy savings, designed to withstand harsh outdoor conditions.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TWR4030A1000A

Technical Specifications

• Outdoor Unit: Compressor LRA: 71
• Outdoor Unit: Compressor Type: Scroll
• Outdoor Unit: Fan Motor FLA: 0.64
• Outdoor Unit: Refrigerant Control: Expansion Valve
• Power Supply: 208/230 V/1 Phase/60 Hz
• Refrigerant Charge lbs: 4 lbs-10 oz
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Rows - Fins per Inch: 24
• Tonnage: 2.5 Ton
• Tube Size (in): 3/8
• BTU Cooling Rating: 30,000 Btu/hr
• Blower Diameter: 23 in
• Blower Motor Type: PSC
• Br. Cir. Prot. Rating. - Max (Amps): 16
• Charging Specification Subcooling: 12 deg F
• Coil Type: Spine Fin
• Compressor Insulation/Sound Blanket: No
• Compressor RLA: 10.4
• Compressor Stages: Single Stage
• Compressor Sump Heater Factory Installed: No
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Elec Volts: 208/230 V
• Factory Charged: Yes
• Factory Installed Start Components: BAYKSKT263
• Family Description: R-454B Heat Pump
• Full Load Amperage (FLA): 0.64
• HSPF2 Range: 7.5
• Line Size - Liquid (in): 5/16
• Line Size - Suction (In): 3/4
• MCA: 16
• Max Breaker Size, Without Electric Heater (Amps): 25
• Max Fuse Size: 25 amps
• Max Fuse: 25 A
• Model: 5TWR4
• Motor Power Rating: 208/230 V/1 Phase/60 Hz
• Motor Speed: 850 rpm
• Noise Level: 71 dba
• Number of Stages: Single
• Outdoor Coil-FPI: 24
• Outdoor Coil-Face Area sq-ft: 18.75
• Outdoor Coil-Rows: 1
• Outdoor Coil-Tube Size (In): 3/8
• Outdoor Fan - CFM: 2820
• Outdoor Fan - Diameter In: 23
• Outdoor Fan - Drive: Direct
• Outdoor Fan - HP: 1-1/8
• Outdoor Fan - Number of Speeds: 1
• Outdoor Fan - Speed: 850
• Outdoor Fan - Type: Propeller
• Phase: 1.0 ph
• Product Family Series: Choice
• SEER Rating: 14
• SEER2 Range: 7.5
• Series: 14 Single Stage Heat Pump
• Stage: 1
• Volts: 208/230 V
• Condenser Model: 5TWR4030A1000A
• Size/Tonnage: 2.5-Ton
• Cooling Efficiency (SEER2): 14.3
• Stages: Single
• Refrigerant: R-454B
• Application: Heat Pump
• A2L Compatible: Yes
• BTU: 30000
• CFM: 2820 ft3/min
• Decibel Rating (dB): 71 dB
• Depth: 30 in
• EER2: 11.2
• Factory Std. Refrigerant Charge: 10 oz
• HSPF2: 7.5
• Height: 33 in
• Horsepower: 1.13 hp
• Liquid Line (OD): 5/16 in
• Lock Rotor Amps (LRA): 71
• Minimum Circuit Ampacity (MCA): 16
• Single Phase: Single Phase
• Rated Load Amps (RLA): 10.4
• SEER: 14.0
• Sound Blanket: No
• Suction Line (OD): 3/4 in
• UL Listed: Yes
• Width: 33 in
