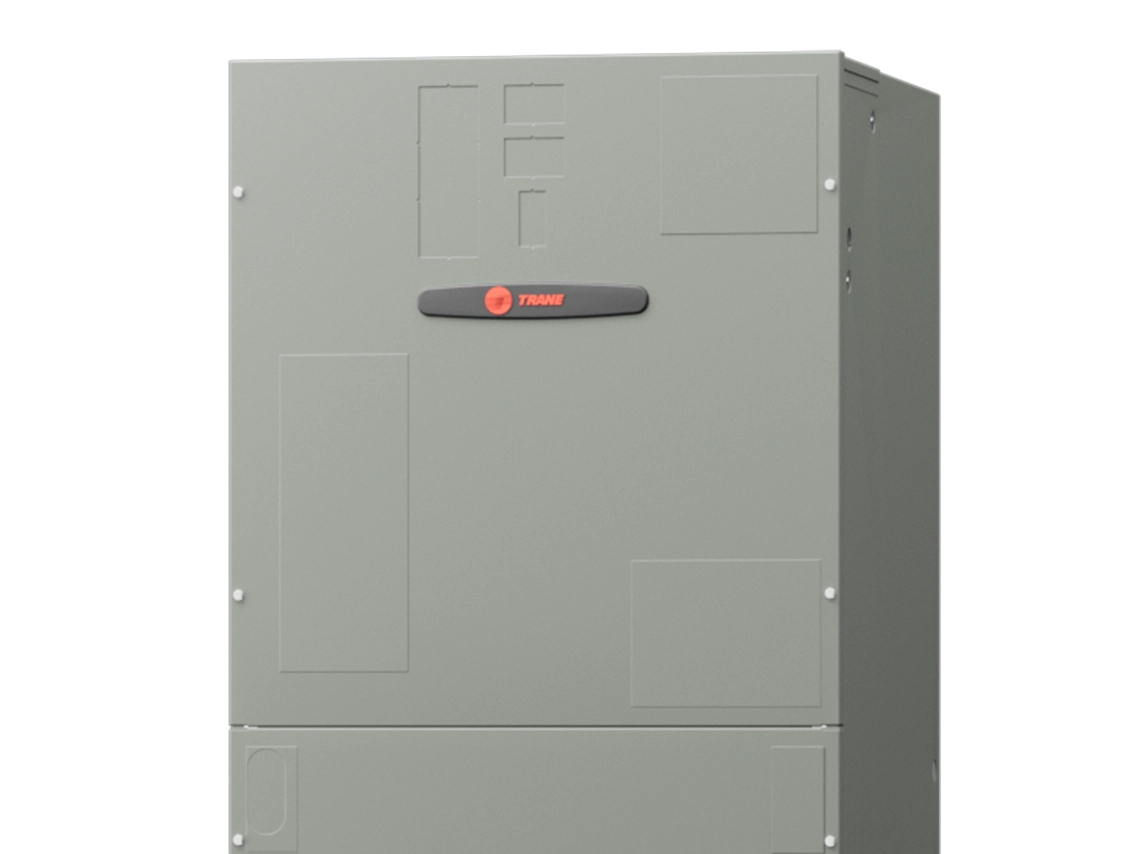

Trane 5TEM4D04AC31SA Choice 2.0-3.5T Single Stage Air Handler

Product Description

The Trane 5TEM4D04AC31SA is a Choice, 2.0-3.5T, single-stage air handler. This multi-position unit features a 42,000 BTU rating, 208/230V, R454B refrigerant, and an ECM motor. It also includes TXV metering and is designed for compatibility with R-454B equipment. Ideal for central split systems, this air handler ensures reliable comfort and efficiency.

• Utilizes R-454B refrigerant with low Global Warming Potential (GWP)
• Features new TXVs designed for R-454B refrigerant compatibility
• Equipped with a Refrigerant Detection System (RDS) and Mitigation Control Board (MCB)

Product Highlights

Multi-position air handler with ECM motor, TXV metering, and compatibility with Trane CleanEffects for enhanced air quality.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TEM4D04AC31SA
• Country of Origin: United States

Technical Specifications

• BTU Rating: 42,000 Btu/hr
• Blower type: Constant Torque ECM
• CFM Rating: 1,400 cfm
• Configuration: Multi-Position
• Frequency Rating: 60 Hz
• Metering Device: TXV
• Model: 5TEM4D04AC31S
• Motor Type: ECM
• Number of Stages: Single
• Phase: 1 ph
• Position: Multi Position
• Product Family Series: Choice
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Series: Choice
• Stage: 1
• Tonnage: 3.5 Ton
• Voltage Rating: 208/230 V
• Product Height (in): 51.45
• Product Length (in): 21.15
• Air Flow Direction: Downflow, Horizontal, Upflow
• Product Width (in): 23.5
• Blower Motor: Variable Speed
• Cooling Capacity: 2 Ton, 2.5 Ton, 3 Ton, 3.5 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 20 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-454b
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Voltage: 240
• Fan Stages: Constant Torque
• Compatible Refrigerant: R-454B
