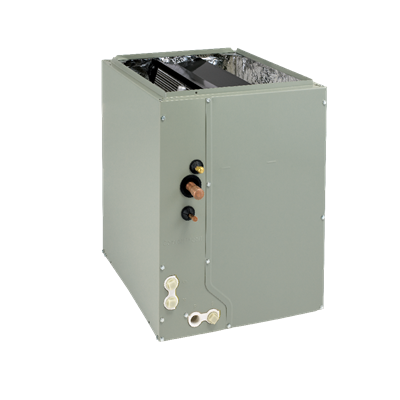

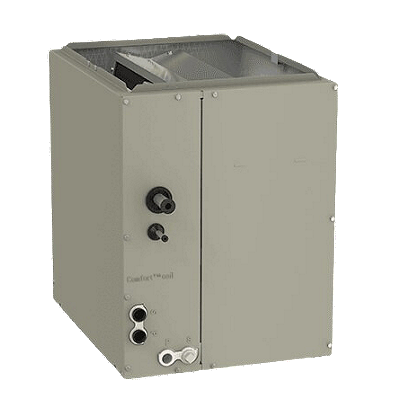

Trane 4TXCC005DS3HCB R-410A Aluminum Cased Coil

Product Description

The Trane 4TXCC005DS3HCB is an aluminum cased coil made for HVAC systems. It uses R-410A refrigerant and comes with TXV refrigerant control for efficient operation. This coil can be set up for upflow, downflow, or horizontal airflow, making it suitable for various residential applications. It also includes a drain pan to manage moisture effectively.

• Aluminum coil material for durability
• Compatible with R-410A refrigerant
• Convertible configuration for multiple installation options

Product Highlights

This coil offers a reliable solution for effective heat transfer in HVAC systems, ensuring optimal performance in a variety of setups.

Product Information

Standard Information

• Brand: Trane
• MPN: 4TXCC005DS3HCB

Technical Specifications

• Coil Type: A
• Material: Aluminum
• Refrigerant Type: R-410A
• Configuration: Upflow/Downflow/Horizontal
• Refrigerant Control: TXV
• Enclosure Type: Cased
• Air Flow Type: Multiposition
• Nominal Capacity BTU Rating: 24,000 to 42,000
• Tonnage: 2 to 4
• Cooling Capacity (btu/h): 48,000
• Cooling Capacity (Tons): 4.0
• Width: 21.00 inches
• Depth: 21.50 inches
• Height: 22.50 inches
• Liquid Line Size: 3/8 inches
• Suction Line Size: 7/8 inches
• Supply Air Opening: 19.25 X 19.38 inches
• Weight: 60.0 lbs
• CFM: 1350 ft3/min
• Max CFM: 1350 cfm
