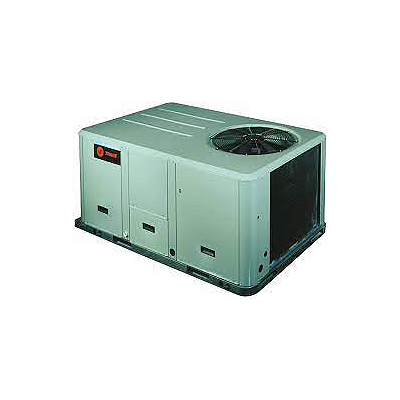

Trane YSJ072A3SAH083K Rooftop Gas Electric Unit 6 Ton

Product Description

The TRANE YSJ072A3SAH083K is a packaged rooftop gas/electric unit rated at 6 nominal cooling tons with 72 MBH gross cooling capacity. It operates on 208-230 volts, three phase, 60 Hz and uses R-410A refrigerant. This self-contained rooftop package combines a direct-expansion cooling system with gas heat in a single cabinet, reducing the need for separate indoor equipment. Licensed HVAC technicians typically install and service this class of equipment in light commercial applications where rooftop mounting is the standard mechanical solution.

This unit is designed for light commercial rooftop installations where a single packaged system handles both cooling and heating loads. Typical applications include retail spaces, small office buildings, and similar structures that require a self-contained HVAC solution without a separate air handler or furnace. The 6-ton cooling capacity suits mid-size commercial zones, and the three-phase electrical supply requirement is standard for commercial construction of this equipment class.

Key Features

• 6 nominal cooling tons with 72 MBH gross cooling capacity
• R-410A refrigerant for compliance with current environmental standards
• 208-230 volt, three-phase power supply for commercial electrical systems
• Integrated gas/electric design combines cooling and heating in one rooftop cabinet
• Self-contained packaged configuration eliminates the need for a separate indoor air handler

Compatibility

Designed as an OEM packaged rooftop gas/electric unit for light commercial applications requiring a 6-ton, 208-230 volt, three-phase R-410A system.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with commercial rooftop equipment, refrigerant handling under EPA Section 608, and local mechanical codes. Disconnect and lock out all electrical power before servicing any component. Verify that the structural roof curb is rated for the unit weight and properly flashed before setting the cabinet. Gas piping and electrical connections must conform to the applicable edition of the IFGC and NEC as adopted locally.

Technical Specifications

• Unit Type: Gas-Pack (Packaged Gas/Electric)
• Cooling Capacity: 6 tons nominal, 72 MBH gross
• Voltage: 208-230 volts
• Phase: Three phase
• Frequency: 60 Hz
• Refrigerant: R-410A

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YSJ072A3SAH083K
