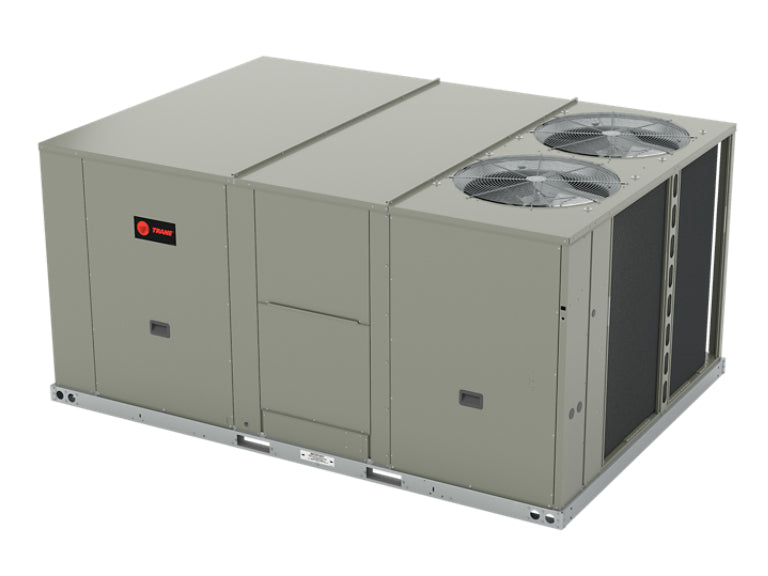

Trane YHC067E4RMA43R8 Rooftop Gas-pack 5 Ton 460V

Product Description

The TRANE YHC067E4RMA43R8 is a packaged rooftop gas-pack unit designed for commercial HVAC applications. Gas-pack units integrate direct-fired heating and mechanical cooling into a single factory-assembled cabinet mounted on a rooftop curb, eliminating the need for separate indoor heating equipment. This unit operates on 460 volts, 3-phase power and is rated at 5 tons of cooling capacity. It is typically installed by licensed commercial HVAC technicians on low-slope or flat roofs using a matching roof curb.

This unit is suited for light commercial and commercial rooftop installations where a single-package solution is required. Applications include retail spaces, small office buildings, warehouses, and similar structures that require combined heating and cooling from a single rooftop-mounted cabinet. The 460-volt, 3-phase electrical configuration makes it appropriate for buildings with commercial-grade power infrastructure rather than standard residential single-phase service.

Key Features

• Gas-pack configuration provides direct-fired heating and mechanical cooling in one cabinet
• 5-ton cooling capacity suited for light commercial spaces
• 460V 3-phase power input for commercial electrical systems
• Single-package rooftop design simplifies installation and reduces indoor mechanical room requirements
• Factory-assembled cabinet mounts on standard rooftop curb

Compatibility

Designed as an OEM rooftop gas-pack unit for commercial HVAC applications requiring 460V 3-phase power and 5-ton cooling capacity.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician familiar with rooftop packaged equipment. Disconnect and lock out all electrical power before servicing. The unit requires a properly sized and flashed roof curb for structural support and weathertight penetration. Gas supply connections and venting must comply with local mechanical codes and IFGC requirements.

Technical Specifications

• Unit Type: Gas-Pack
• Cooling Capacity: 5 Ton
• Voltage: 460 volts
• Phase: 3-Phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC067E4RMA43R8
