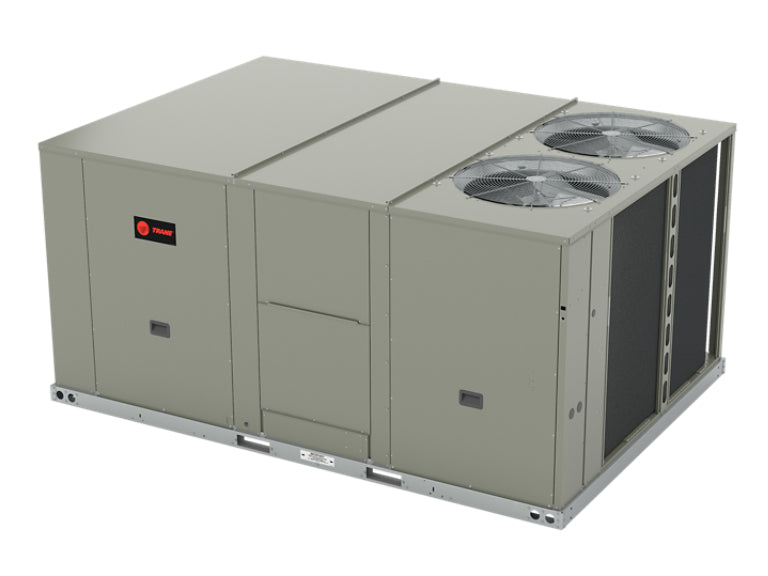

Trane YHC060F4RLA6G9J Packaged Rooftop Unit 5 Ton 460V

Product Description

The TRANE YHC060F4RLA6G9J is a commercial packaged rooftop unit (RTU) that combines direct-expansion (DX) cooling with gas heating in a single factory-assembled cabinet. Rated at 5 tons nominal gross cooling capacity (60 MBh), it operates on 460 volts, 3-phase power, making it suited for light commercial and commercial rooftop applications. The unit features a microchannel condenser coil, which reduces refrigerant charge and improves heat transfer efficiency compared to traditional round-tube plate-fin designs. Licensed HVAC commercial technicians are the primary installers for this class of equipment.

This gas-electric packaged unit is designed for rooftop installation on commercial structures, delivering both cooling and gas heating from a single piece of equipment. Its 460V, 3-phase electrical configuration targets light commercial buildings, retail spaces, and similar occupancies where three-phase power is available at the rooftop disconnect. The microchannel condenser design supports high-efficiency operation in the demanding thermal environment typical of rooftop installations.

Key Features

• 5-ton nominal gross cooling capacity (60 MBh) in a single-package gas-electric configuration
• 460V, 3-phase power supply for commercial electrical service compatibility
• Microchannel condenser coil for reduced refrigerant charge and improved heat transfer
• Integrated gas heating and DX cooling in one factory-assembled rooftop cabinet
• Designed for commercial rooftop curb mounting

Compatibility

Designed as an OEM commercial packaged rooftop unit for installation on standard commercial roof curbs compatible with the TRANE YHC series platform. Consult the unit submittal drawings for curb dimensions and adapter requirements before ordering.

Installation Notes

Installation must be performed by a licensed HVAC commercial contractor in accordance with applicable mechanical codes, NEC requirements for 460V 3-phase disconnects, and local building permit requirements. Disconnect and lock out all electrical power at the rooftop disconnect before any service work. Verify roof curb dimensions and structural load capacity before rigging and setting the unit. Refrigerant circuit work requires an EPA Section 608 certified technician.

Technical Specifications

• Unit Type: Gas-Pack (Gas-Electric Packaged Rooftop Unit)
• Nominal Cooling Capacity: 5 tons (60 MBh)
• Supply Voltage: 460 volts, 3-phase
• Condenser Coil Type: Microchannel

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC060F4RLA6G9J
