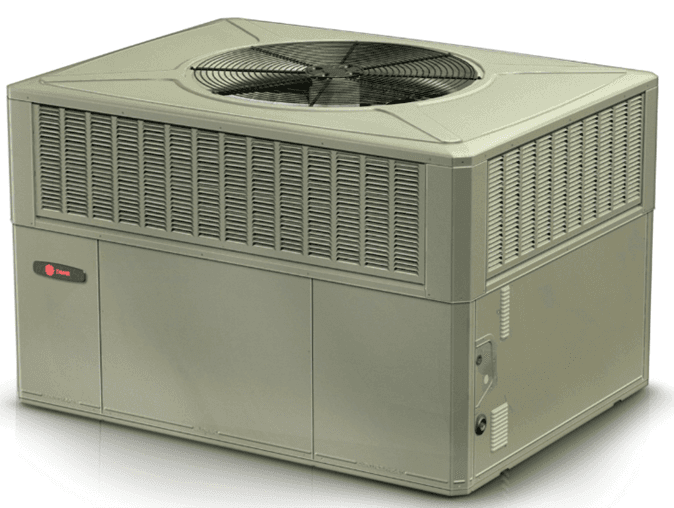

Trane YHC047E3RMA23UG Rooftop Gas Electric Unit 4 Ton

Product Description

The TRANE YHC047E3RMA23UG is a packaged rooftop gas/electric unit built for light commercial HVAC applications. This self-contained gas-pack integrates direct-expansion DX cooling with gas heat into a single rooftop cabinet, eliminating the need for a separate indoor air handler or furnace. Rated at 4 tons of cooling capacity and designed for 208/230V three-phase power, the YHC047E3RMA23UG is typically specified and installed by licensed commercial HVAC contractors on low-rise commercial buildings, retail spaces, and similar structures where rooftop placement is required.

This unit is suited for light commercial rooftop installations where a single piece of equipment must deliver both cooling and gas heat. The 3-phase electrical configuration makes it appropriate for commercial service panels commonly found in small offices, retail, and light industrial facilities. A licensed HVAC technician familiar with commercial rooftop equipment is the typical installer for this class of equipment.

Key Features

• Gas-pack configuration combines DX cooling and gas heat in one rooftop cabinet
• 4-ton cooling capacity for light commercial spaces
• 208/230V three-phase power supply for commercial electrical systems
• Self-contained design simplifies rooftop installation and reduces equipment footprint
• Designed for light commercial applications including retail, office, and similar occupancies

Compatibility

Designed as an OEM rooftop gas/electric packaged unit for light commercial applications requiring 4-ton cooling capacity and 208/230V three-phase electrical service.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect all electrical power at the service panel before beginning any wiring or service work on this unit. Gas supply connections must comply with the International Fuel Gas Code (IFGC) and all applicable local ordinances. Rooftop curb alignment and ductwork connections should be verified prior to startup to ensure proper airflow and weathertight sealing.

Technical Specifications

• Unit Type: Gas-Pack (Packaged Rooftop Gas/Electric)
• Cooling Capacity: 4 Tons
• Voltage: 208/230V
• Phase: 3-Phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC047E3RMA23UG
