Description

Product Description

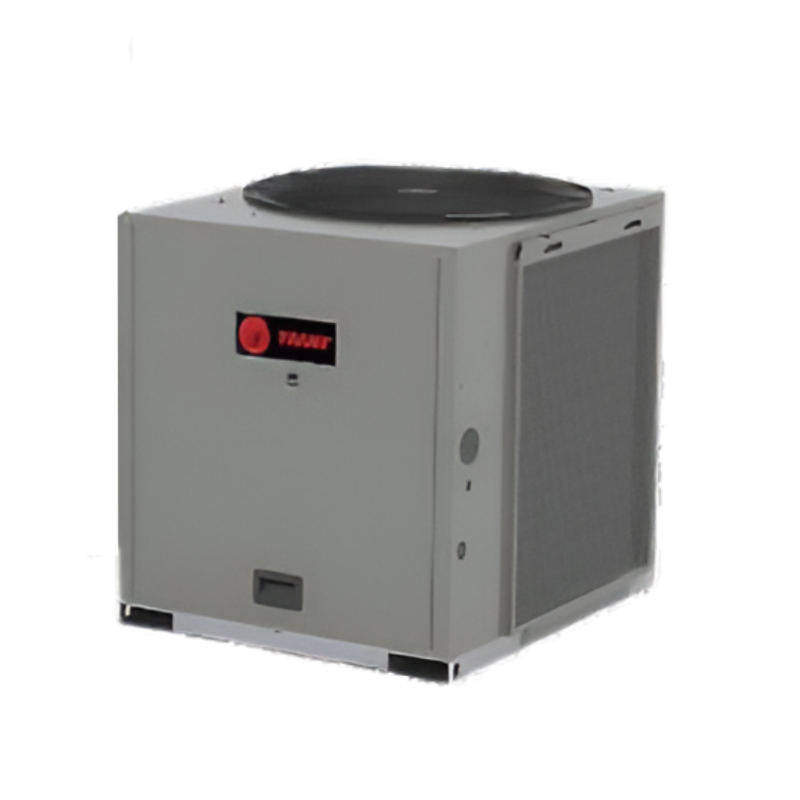

The TRANE TTA07244DACE02Q is a commercial-grade split system condensing unit rated at 72,000 BTU/h, equivalent to 6 nominal tons of cooling capacity. It operates on a 460-volt, 3-phase power supply and uses R-410A refrigerant. Designed for cooling-only applications, this condensing unit serves as the outdoor component of a split system configuration. It is typically installed by licensed commercial HVAC technicians on rooftop pads, equipment yards, or building mechanical areas where adequate clearance and structural support are available.

The TTA07244DACE02Q is suited for commercial cooling applications requiring substantial capacity, such as office buildings, retail spaces, light industrial facilities, and other mid-to-large commercial occupancies. At 6 tons, it pairs with a compatible air handler or fan coil unit to deliver conditioned air across larger occupied zones. The 3-phase electrical supply requirement makes it appropriate for commercial buildings with established 3-phase service infrastructure.

Key Features

  • 72,000 BTU/h (6 ton) cooling capacity for commercial-scale applications
  • 460-volt, 3-phase power supply for commercial electrical infrastructure
  • R-410A refrigerant system — compliant with current industry standards
  • Cooling-only configuration for dedicated air conditioning duty
  • Split system design pairs with a separate air handling unit

Compatibility

Designed as an OEM-specification commercial split system condensing unit intended for use with compatible 6-ton air handlers or fan coil units in 460-volt, 3-phase commercial installations.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician holding the appropriate EPA Section 608 certification for R-410A refrigerant handling. Disconnect and lock out all electrical power before servicing. Follow local mechanical and electrical codes, including applicable ASHRAE and NEC requirements, for equipment clearances, electrical disconnects, and refrigerant line sizing. Do not operate the unit without verifying that the matched indoor air handler is properly installed and the refrigerant circuit is leak-tested and charged per system design specifications.

Technical Specifications

  • Unit Type: Cooling
  • Cooling Capacity: 72,000 BTU/h (6 Ton)
  • Voltage: 460 volts
  • Phase: 3-Phase
  • Refrigerant: R-410A

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: TTA07244DACE02Q
