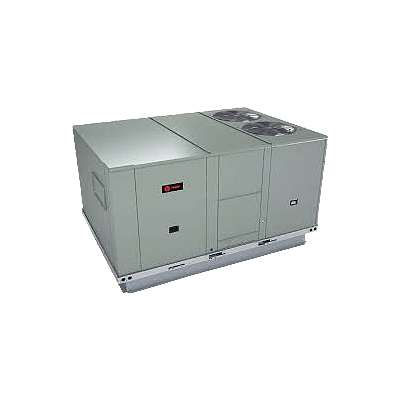

Trane GCC102A3ELB4260 Gas Electric Rooftop Unit 8.5 Ton

Product Description

The TRANE GCC102A3ELB4260 is a commercial-grade gas/electric packaged rooftop unit (RTU) rated at 8.5 tons of nominal gross cooling capacity. It integrates direct-expansion (DX) cooling and gas heat in a single rooftop cabinet, making it a self-contained solution for commercial HVAC applications. The unit operates on 208/230 volts, 3-phase power, and uses R-410A refrigerant. Licensed commercial HVAC technicians and mechanical contractors handle installation and service of this equipment class.

This packaged rooftop unit is intended for light commercial and commercial applications where both cooling and gas heating are required from a single rooftop-mounted system. Typical installations include retail spaces, office buildings, and light industrial facilities. The 8.5-ton capacity class addresses mid-range commercial cooling loads. Three-phase 208/230-volt power supply is required, making this unit suited for buildings with commercial electrical service already in place.

Key Features

• 8.5-ton nominal gross cooling capacity for mid-range commercial loads
• Integrated gas heat and DX cooling in a single packaged cabinet
• R-410A refrigerant — compliant with current industry standards
• 208/230V 3-phase electrical configuration for commercial power supply
• Rooftop-mount design consolidates mechanical equipment off the conditioned floor space

Compatibility

Designed as an OEM packaged rooftop gas/electric unit for commercial HVAC installations requiring 8.5-ton capacity at 208/230V 3-phase service.

Installation Notes

Installation must be performed by a licensed HVAC contractor familiar with commercial rooftop equipment. Disconnect and lock out all electrical power and shut off the gas supply before servicing. Refrigerant handling requires EPA Section 608 certification. Installation must comply with applicable local mechanical codes, the International Mechanical Code (IMC), and the International Fuel Gas Code (IFGC) for the gas heat section.

Technical Specifications

• Unit Type: Gas/Electric Packaged Rooftop Unit
• Nominal Cooling Capacity: 8.5 Tons
• Voltage: 208/230V
• Phase: 3-Phase
• Refrigerant: R-410A

Standard Information

• Brand: TRANE
• Manufacturer Part Number: GCC102A3ELB4260
