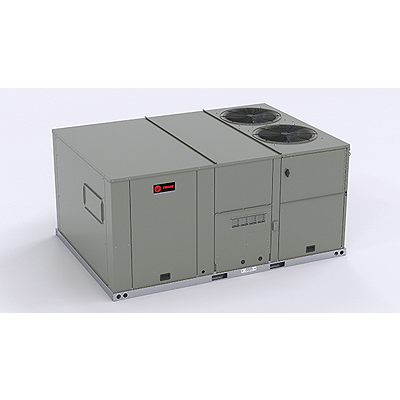

Trane ECC090A3E0B3YXA 7.5 Ton Commercial Packaged Ac

Product Description

The TRANE ECC090A3E0B3YXA is a 7.5-ton self-contained commercial packaged air conditioner built for rooftop installation in light commercial cooling applications. This unit delivers dedicated cooling in a single-package configuration, eliminating the need for a separate condenser or air handler. Operating at 575 volts, 3-phase power, it is sized for mid-range commercial loads and is installed by licensed commercial HVAC technicians. The packaged design simplifies service access and reduces refrigerant line complexity typical of split systems.

This unit is suited for light commercial rooftop applications such as retail spaces, office buildings, and similar single-story or low-rise commercial structures. Its self-contained configuration makes it a common choice for new construction and retrofit rooftop installations where a single-unit cooling solution is required. Installation is performed by commercial HVAC contractors familiar with rooftop curb mounting, high-voltage 3-phase wiring, and commercial refrigerant circuit commissioning.

Key Features

• 7.5-ton cooling capacity suited for mid-range commercial loads
• 575V, 3-phase power supply for commercial electrical infrastructure
• Self-contained packaged design with integrated refrigerant circuit
• Rooftop-ready configuration compatible with standard commercial curb mounting
• Single-unit installation reduces interconnecting refrigerant line requirements

Compatibility

Designed as an OEM commercial packaged rooftop cooling unit for light commercial applications requiring 575V, 3-phase power supply.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician familiar with rooftop equipment and high-voltage 3-phase electrical systems. Disconnect and lock out all electrical power before servicing. Rooftop curb mounting, equipment weight loading, and electrical connections must comply with local mechanical and electrical codes, including applicable sections of the NEC. Do not energize the unit or initiate refrigerant circuit operation until all connections have been verified and the system has been commissioned per the manufacturer startup procedure.

Technical Specifications

• Unit Type: Cooling
• Cooling Capacity: 7.5 tons
• Voltage: 575V, 3-phase
• Configuration: Packaged Rooftop Unit

Standard Information

• Brand: TRANE
• Manufacturer Part Number: ECC090A3E0B3YXA
