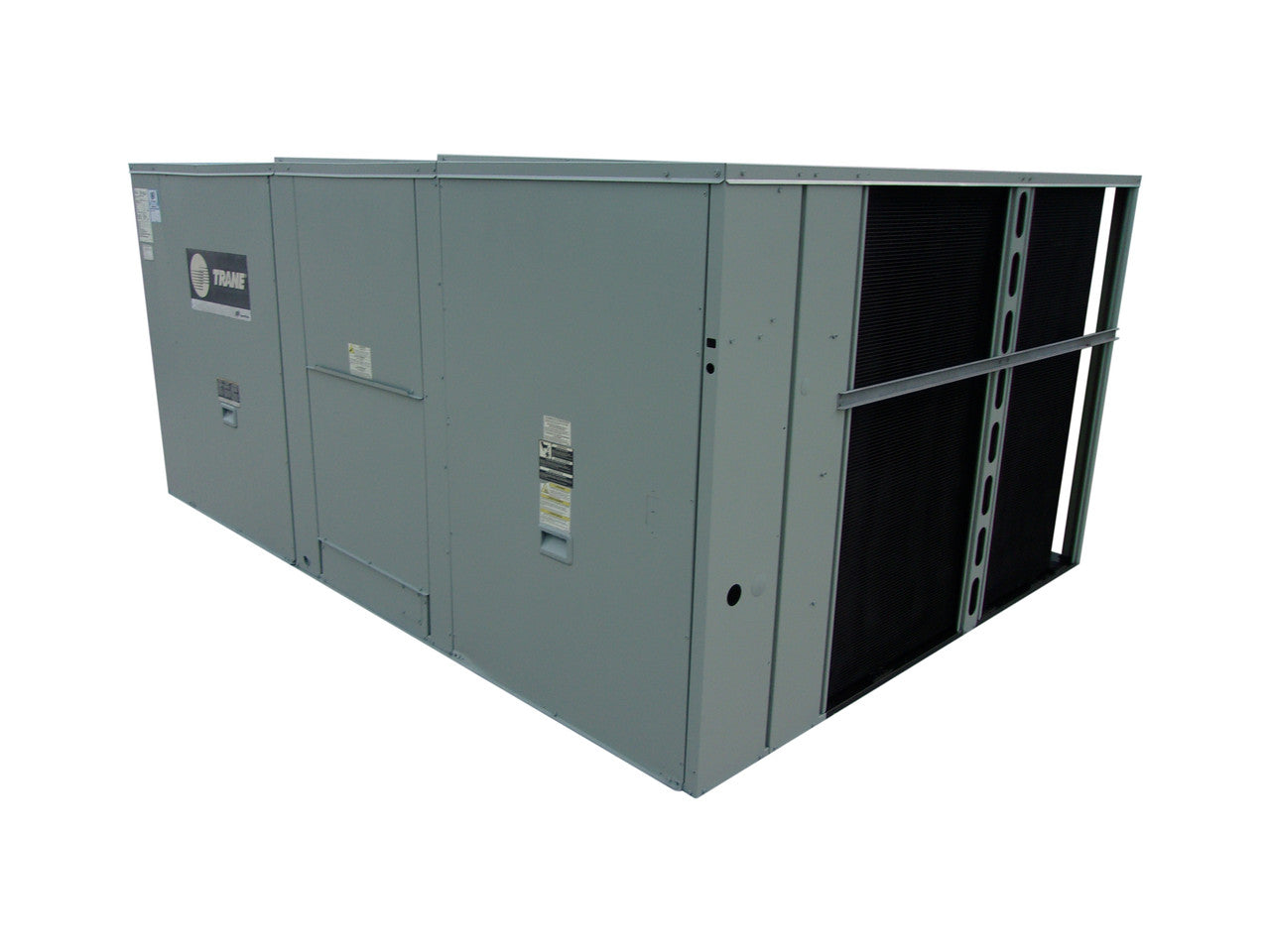

Trane EAC240A3E0A0000 Rooftop Ac 240000 Btu 20 Ton 208-230V

Product Description

The TRANE EAC240A3E0A0000 is a commercial packaged rooftop air conditioning unit rated at 240,000 BTU/h nominal cooling capacity. It operates on 208-230 volts, 60 Hz, three-phase power and uses R-410A refrigerant. Configured for downflow discharge, this unit delivers conditioned air directly into the ductwork below the rooftop curb. At 20 tons of cooling capacity, it is sized for medium to large commercial applications. Installation and commissioning are typically performed by licensed commercial HVAC technicians familiar with rooftop equipment, three-phase electrical systems, and R-410A refrigerant handling.

The EAC240A3E0A0000 is designed for commercial rooftop installations where a self-contained, packaged cooling solution is required. Its downflow discharge configuration suits buildings with overhead ductwork connected through a roof curb. Typical applications include retail facilities, office buildings, light industrial spaces, and other commercial structures requiring centralized cooling from a single rooftop unit. The three-phase power requirement makes this unit suitable for commercial buildings with standard three-phase electrical service.

Key Features

• 240,000 BTU/h nominal cooling capacity for medium to large commercial spaces
• 20-ton cooling output in a single packaged rooftop configuration
• Operates on 208-230 volts, 60 Hz, three-phase power
• Uses R-410A refrigerant, compliant with current industry standards
• Downflow discharge design for direct connection to below-roof ductwork

Compatibility

Designed as an OEM packaged rooftop cooling unit for commercial applications requiring 20-ton, 208-230V three-phase downflow discharge equipment mounted on a standard rooftop curb.

Installation Notes

Installation must be performed by licensed commercial HVAC technicians. Power down and lock out all electrical circuits before servicing or making connections. Three-phase electrical connections must comply with applicable NEC requirements and local codes. R-410A refrigerant handling requires EPA Section 608 certification. The unit must be mounted on a properly sized and flashed roof curb; verify curb dimensions and structural load capacity before installation.

Technical Specifications

• Cooling Capacity: 240,000 BTU/h
• Tonnage: 20 tons
• Voltage: 208-230 volts
• Phase: 3-phase
• Frequency: 60 Hz
• Refrigerant: R-410A
• Discharge Configuration: Downflow
• Unit Type: Cooling Only

Standard Information

• Brand: TRANE
• Manufacturer Part Number: EAC240A3E0A0000
