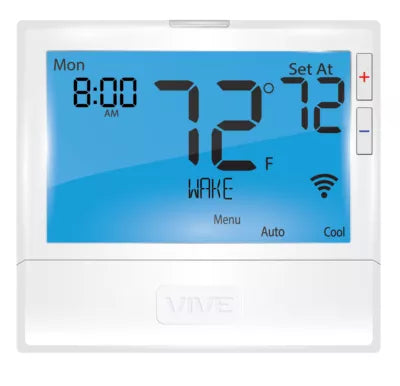

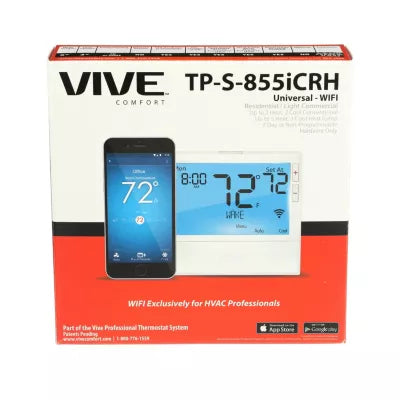

Tradepro tp-s-855icrh 5H/3C Wi-fi Programmable Thermostat

Product Description

The TRADEPRO tp-s-855icrh is a Wi-Fi enabled, 7-day programmable universal thermostat built on the T800 platform. It supports up to 5-stage heating and 3-stage cooling, making it suitable for complex multi-stage residential and light commercial HVAC systems. The 8 square inch display provides clear, at-a-glance status for technicians and end users alike. Control is available through iOS or Android mobile apps, supporting remote access and scheduling. The unit supports 5+1+1 and 7-day programming modes as well as a 0-day non-programmable mode, giving installers flexibility to match the customer's operational needs.

The tp-s-855icrh is designed for universal HVAC applications where multi-stage control and remote connectivity are required. Its 5H/3C staging capacity covers gas furnaces, heat pumps, fan coils, and cooling-only systems in residential and light commercial settings. HVAC technicians installing high-efficiency or multi-stage systems will find the expanded staging and Wi-Fi integration particularly suited to modern zoning and control setups. The thermostat is compatible with the R215S wired indoor sensor and the R250S outdoor and slab sensors, which are sold separately.

Key Features

• Wi-Fi enabled with iOS and Android app support for remote access and scheduling
• 5-stage heating and 3-stage cooling universal control
• 7-day, 5+1+1, and 0-day programmable scheduling modes
• 8 square inch display for clear status readout
• Compatible with R215S wired indoor sensor and R250S outdoor and slab sensors (sold separately)
• Built on the T800 platform for broad HVAC system compatibility

Compatibility

Compatible with R215S wired indoor sensors and R250S outdoor and slab sensors. Designed as a universal replacement or upgrade thermostat for multi-stage residential and light commercial HVAC systems requiring 5H/3C staging.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage thermostat wiring. Power down the HVAC system at the air handler disconnect and furnace breaker before removing the existing thermostat. Verify that the existing wiring supports all required control terminals for the staging configuration before completing the installation. Wi-Fi commissioning should follow the manufacturer app setup procedure after wiring is confirmed.

Technical Specifications

• Staging: 5 heat / 3 cool
• Programming: 7-day, 5+1+1, and 0-day modes
• Display Size: 8 square inches
• Connectivity: Wi-Fi, iOS and Android app compatible
• Platform: T800
• Sensor Compatibility: R215S wired indoor sensor, R250S outdoor and slab sensors (not included)

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-s-855icrh
