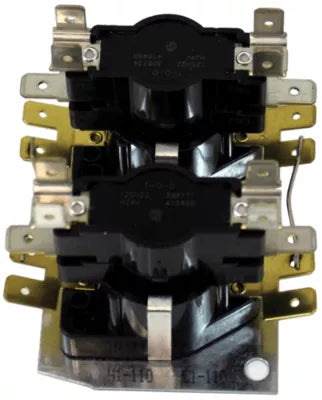

Tradepro tp-q106 Sequencer 1-110 on 1-110 Off

Product Description

The TRADEPRO tp-q106 is a Q Series sequencer designed to control the staged operation of heating elements and blower motors in electric, gas, and oil heat systems. Operating on a 24-volt control circuit, it delivers timed activation with a 1-110 second ON delay and a 1-110 second OFF delay. A five-second delay is built in between all subsequent stages unless those stages are configured to function together. This sequencer is installed by HVAC technicians as part of routine service and system commissioning on heating equipment requiring staged element control.

The tp-q106 is suited for residential and light commercial heating applications where staged sequencing is required to manage electrical load draw across multiple heating elements or blower motor circuits. It fits into electric furnaces and air handlers as well as gas and oil systems that incorporate electric heating stages. HVAC technicians typically install this component during repair or equipment upgrade work where the original sequencer has failed or where staged control is being added to the system.

Key Features

• 24-volt control circuit compatible with standard low-voltage thermostat wiring
• 1-110 second adjustable ON delay and 1-110 second adjustable OFF delay
• Five-second delay between all subsequent stages for controlled load staging
• UL and CSA approved for use in residential and commercial heating systems
• Field-proven Q Series design for reliable long-term service in electric, gas, and oil heat applications

Compatibility

Designed as an OEM-style replacement sequencer for electric furnaces, air handlers, and electric heating stages in gas or oil heat systems that require a 24-volt staged sequencer.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the breaker before removing or installing the sequencer. Verify the control circuit voltage matches the 24-volt rating of this component before energizing. Follow applicable local electrical codes and manufacturer wiring diagrams during installation.

Technical Specifications

• Control Circuit Voltage: 24 volts
• ON Delay Range: 1-110 seconds
• OFF Delay Range: 1-110 seconds
• Stage-to-Stage Delay: 5 seconds
• Certifications: UL, CSA
• Unit of Measure: Each

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-q106
