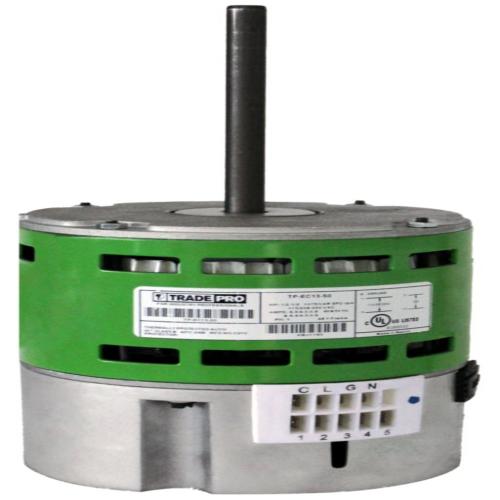

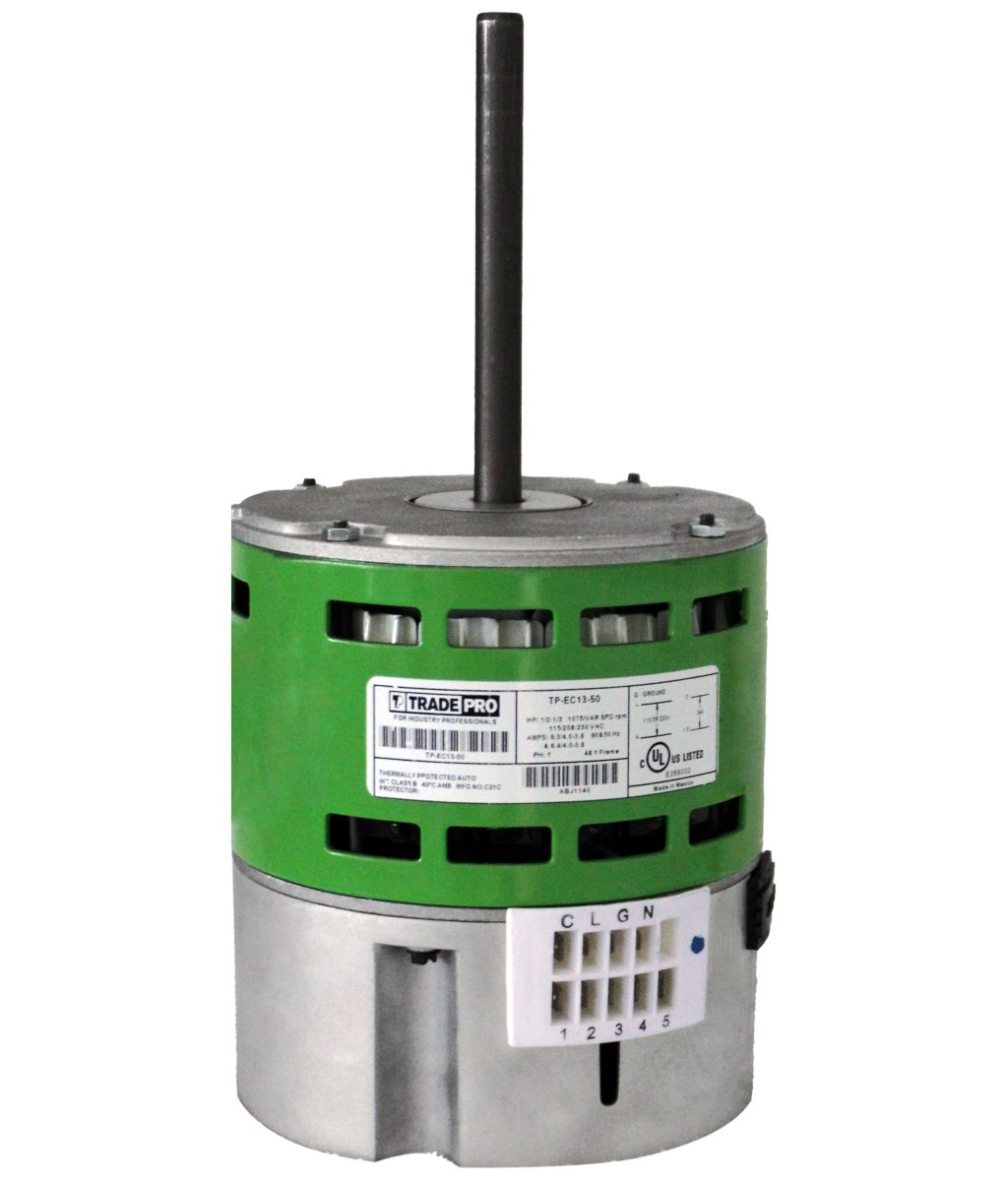

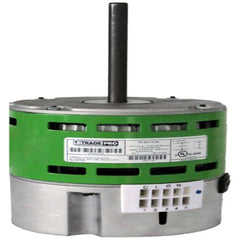

Tradepro TP-EC13-75 blower motor, x-13 ecm, variable speed, 3/4 hp

Product Description

The TRADEPRO TP-EC13-75 is a universal ECM replacement for furnaces and air handlers. It features improved reliability with built-in 6,000 Volt surge protection and industry-leading moisture protection. This motor replaces X13, Endura Pro, and SelecTech constant torque ECMs and is pre-programmed with a universal program, so no programming is required.

• Universal ECM Replacement for Furnaces and Air Handlers
• Improved Reliability with built-in 6,000 Volt surge protection and industry-leading moisture protection
• Replaces X13, Endura Pro and SelecTech constant torque ECM

Product Highlights

This universal replacement motor is ready to install and replaces thousands of OEM models. It operates at 1075 RPM and is suitable for central air conditioners.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-EC13-75
• Country of Origin: MEX

Technical Specifications

• SKU: TP-EC13-75
• Amps: 4-9.3
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: TradePro
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 3/4
• Motor Type: ECM (Electronically Commutated Motor)
• Mounting Type: Belly Band
• NEMA Frame: 48Y
• Number of Speeds: Variable
• Phase: Single
• Poles: 10
• Rotation: Reversible
• RPM: 1,075
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5.0"
• Substantial Commodity: Steel; Copper
• Voltage: 115 VAC; 208-230 VAC
• Weight: 12
• Power Source: Corded Electric
• Compatible Product: Central Air Conditioner
