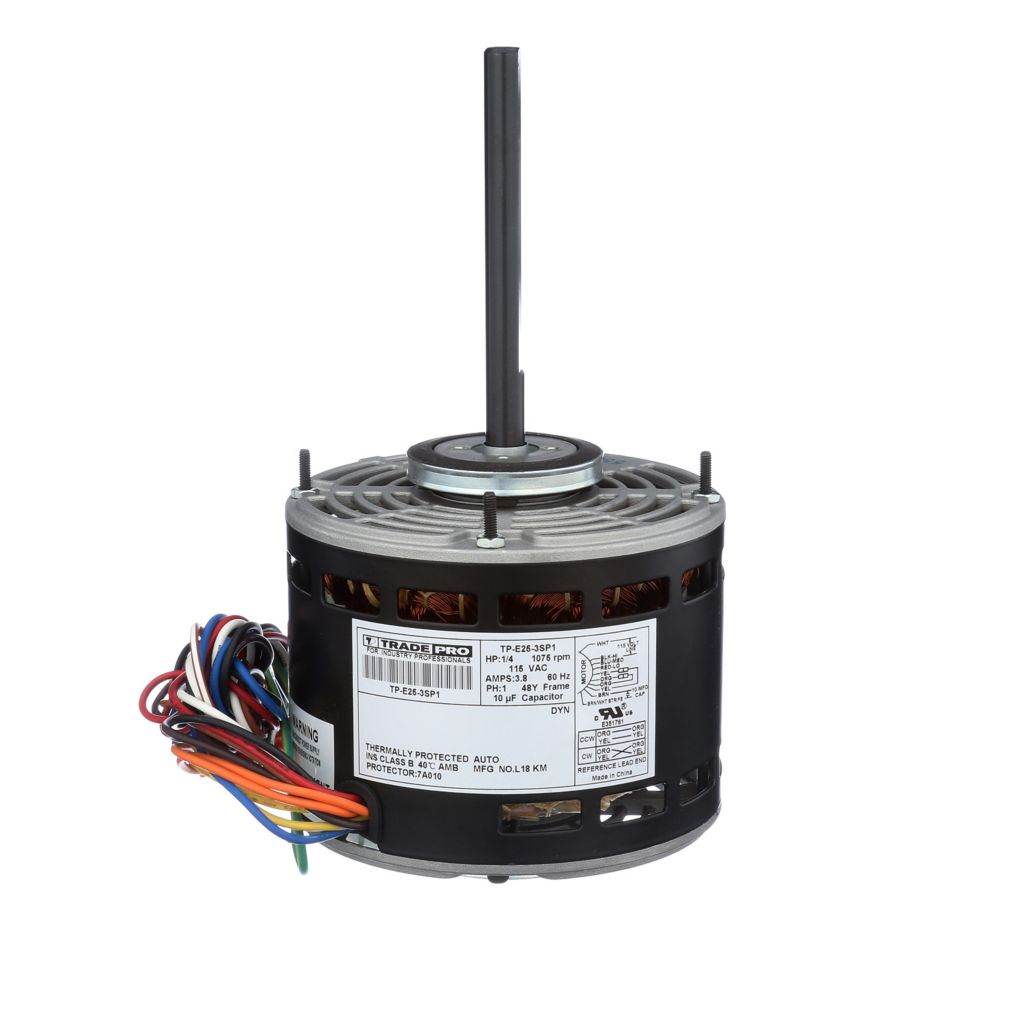

Tradepro TP-E25-3SP1 Direct Evaporator Motor 1/4 HP

Product Description

The TRADEPRO TP-E25-3SP1 direct evaporator motor is 100% functionally tested during manufacturing and retested after final assembly. This fixed fractional motor offers a combination of heavy-duty construction and rugged durability. It features reversible rotation and may require modifications, needing a 10 mfd 370v or 440v run capacitor.

• 100% functionally tested during manufacturing and retested after final assembly
• Ideal combination of heavy duty construction and rugged durability
• Dynamic self-aligning bearing with reversible direction

Product Highlights

This TRADEPRO direct evaporator motor offers durability and reliable performance for various applications. It is designed for easy installation and long-lasting use.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-E25-3SP1
• Country of Origin: China

Technical Specifications

• Input Voltage: 115 V
• Brand: TRADEPRO
• MPN: TP-E25-3SP1
• Rated Load: 1/4 HP
• Country of Origin: China
• SKU: TP-E25-3SP1
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 1/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 3
• Phase: Single
• Poles: 6
• Prop 65: No
• Rotation: Reversible
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 115 VAC
• Product Type: Air Conditioner
• Brands: TradePro
