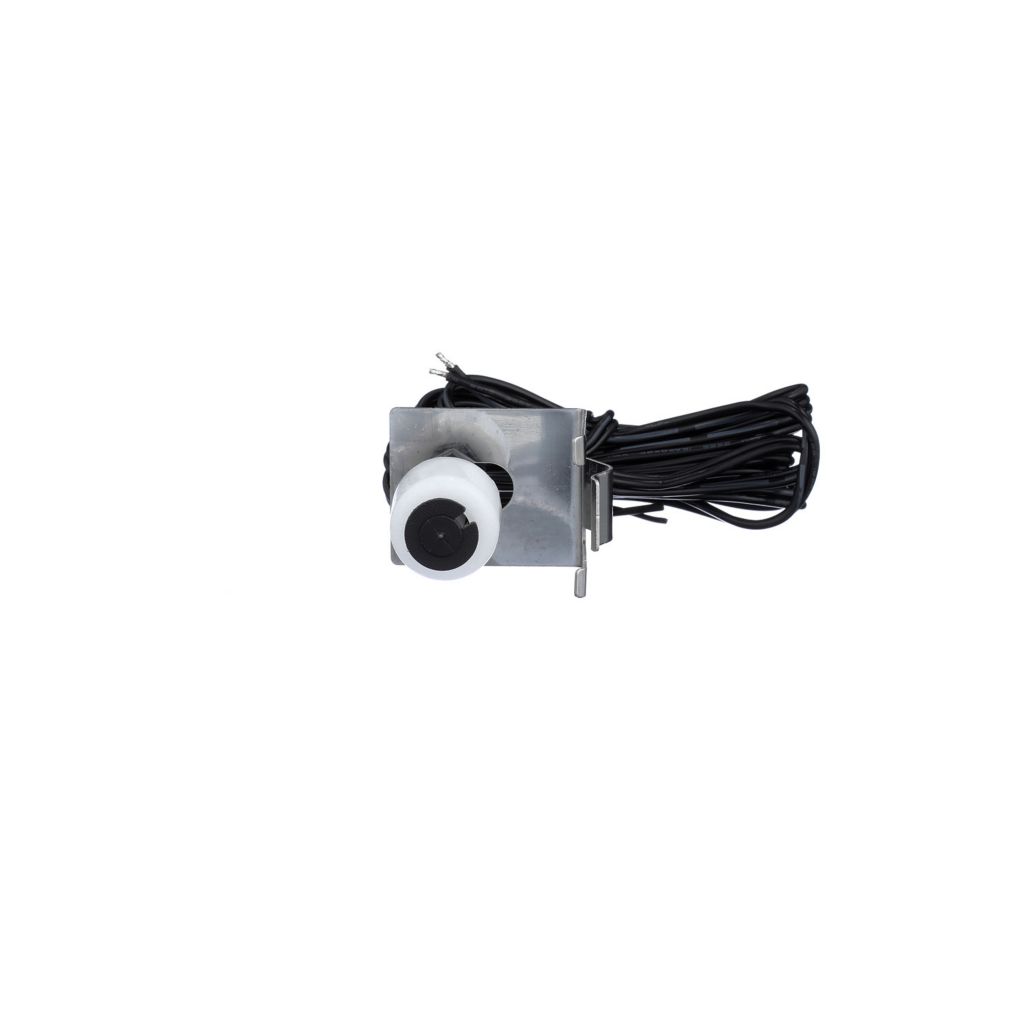

Tradepro TP-CS3 Condensate Drain Pan Switch RECTORSEAL Safe-T-Switch SS3 97647

Product Description

The TRADEPRO TP-CS3 flood prevention switches are simple to install, easy to service and extremely reliable. As water level rises in the auxiliary or main drain pipe, the switch shuts off the system, preventing water from overflowing. It features a durable magnetic reed switch constructed of materials that will not rust or stick.

• Simple to install
• Easy to service
• Extremely reliable
• Durable magnetic reed switch
• Materials that will not rust or stick

Product Highlights

The CS-3 can be installed anywhere on the drain pan. It comes with the proven magnetic reed float design along with six feet of wire for more flexibility in installation.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CS3
• Country of Origin: MEX

Technical Specifications

• SKU: TP-CS3
• Brand: TRADEPRO
• Color: Black Silver, White
• Composition: Plastic
• Connection Size: 3/4"
• Cord Length: 6'
• Country of Origin: MEX
• For Use With: Auxiliary or main drain pipe
• Maximum Amps Running: 1.5
• Mounting Type: Secondary
• Plenum Rated: true
• Prop 65: Yes
• Size: 1 1/4" x 2 1/2"
• Switch Type: Magnetic Reed
• Type: Condensate Switch - Clip
• UPC: 095247167432
• Voltage: 24 VAC
• Wire Gauge: 18 AWG
• Model: TP-CS3
• MPN: TP-CS3
• Line: AIR CONDITIONING & MINI SPLITS PARTS
• Part numbers: TP-CS3
