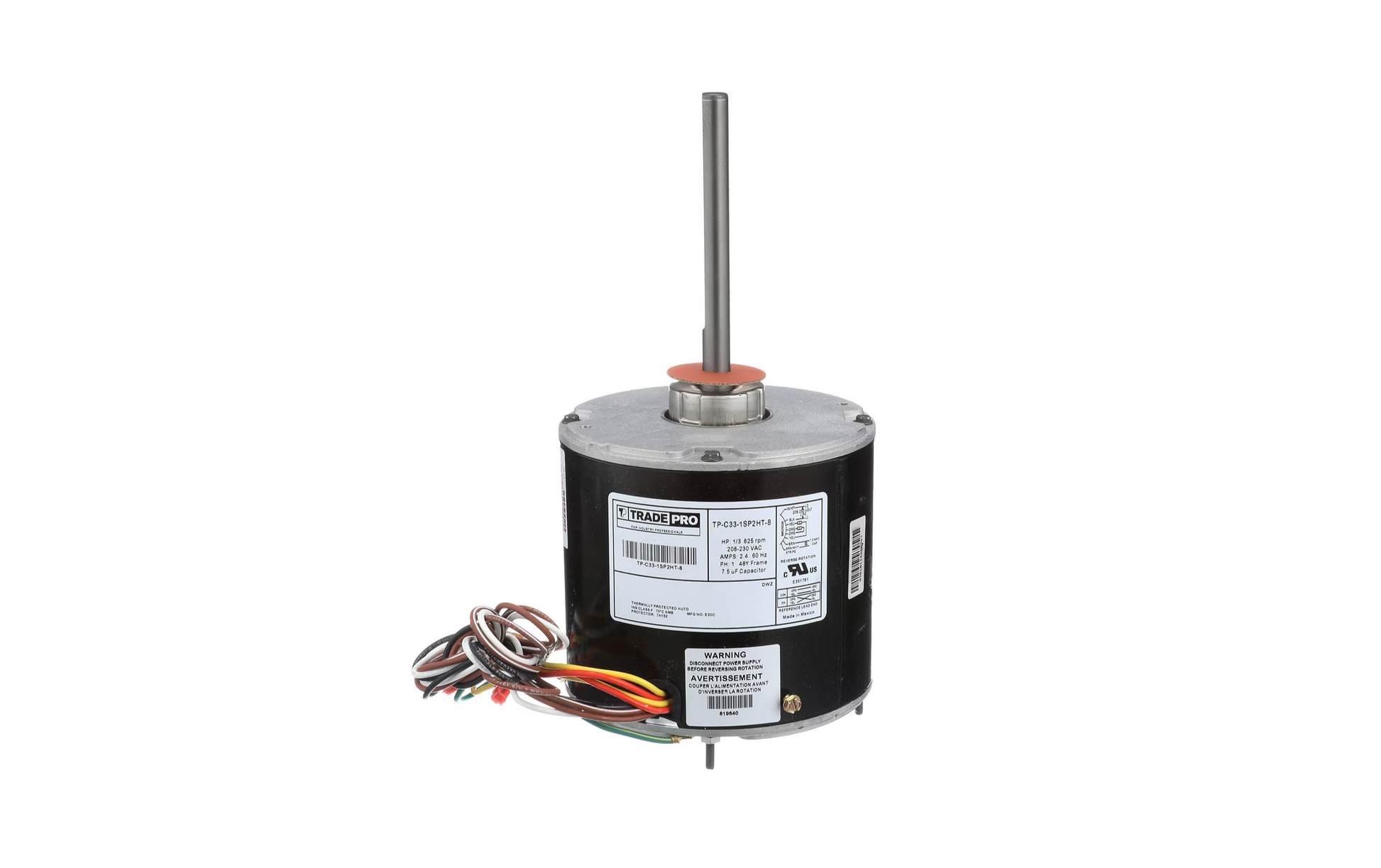

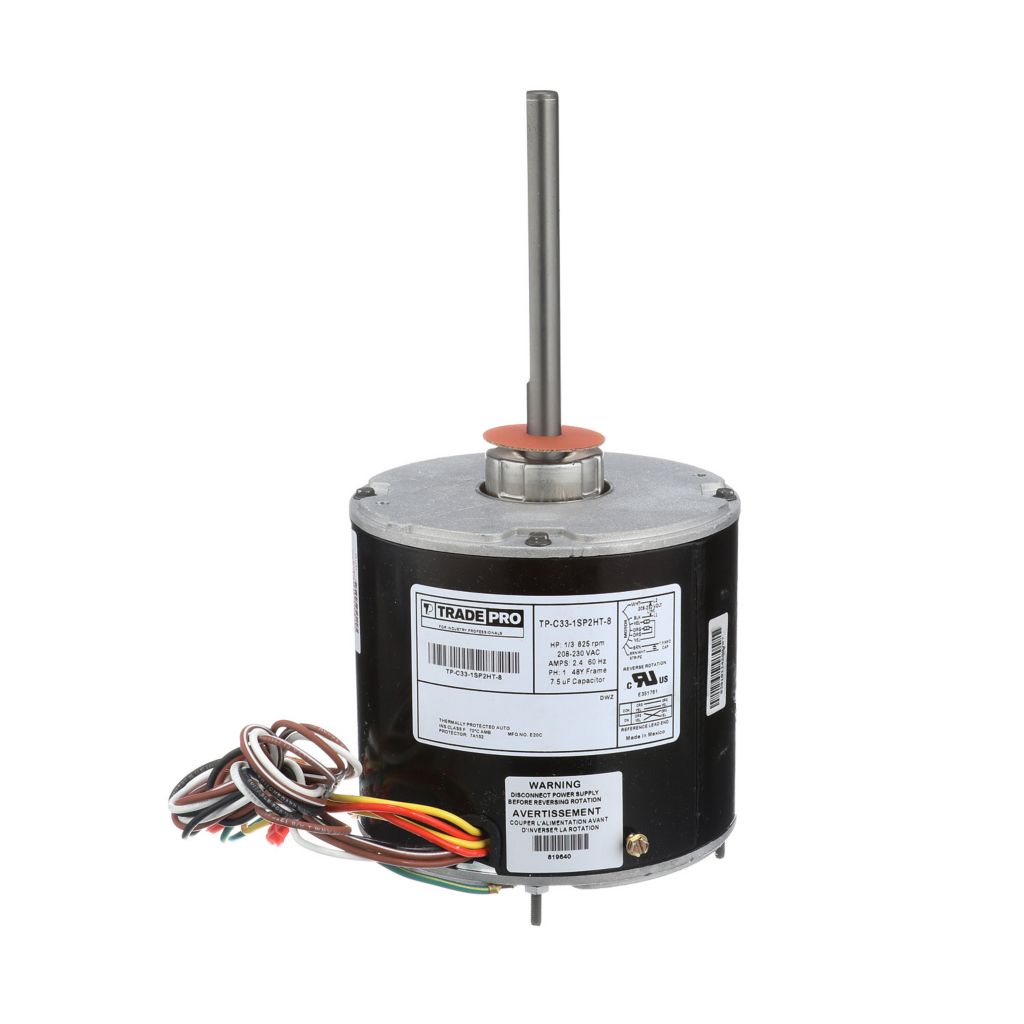

Tradepro tp-c33-1sp2ht-8 condenser fan motor 1/3 hp 825 rpm

Product Description

The TRADEPRO TP-C33-1SP2HT-8 is a heavy-duty condenser fan motor. TRADEPRO motors are 100% functionally tested during manufacturing and retested after final assembly. This motor features heavy-duty construction and rugged durability. Designed to handle higher internal temperatures, preventing premature winding burnout. Operates at 230V and 825 RPM, offering quiet operation and better heat exchange.

• TRADEPRO motors are 100% functionally tested
• Heavy duty construction
• Rugged durability

Product Highlights

This condenser fan motor is engineered for durability and efficient performance in harsh outdoor environments. It is a versatile replacement motor for service technicians.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C33-1SP2HT-8
• Country of Origin: MEX

Technical Specifications

• SKU: TP-C33-1SP2HT-8
• Amps: 2.4
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: TRADEPRO
• Capacitor Required: 7.5 MFD / 370V
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Full Load Amps: 2.4
• Insulation Class: F
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/3
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 8
• Protection: Yes
• Rotation: Reversible (CW/CCW)
• RPM: 825
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• UPC: 816075029583
• Voltage: 208-230 VAC
• Weight: 18.4
• Manufacturer: TRADEPRO
• Part Type: Condenser Fan Motor (High Temperature)
• Frame Size: 48 Frame (5.6" Diameter)
