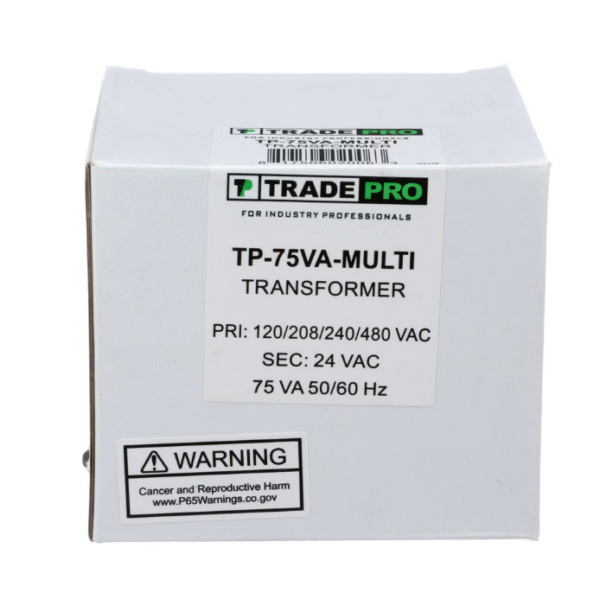

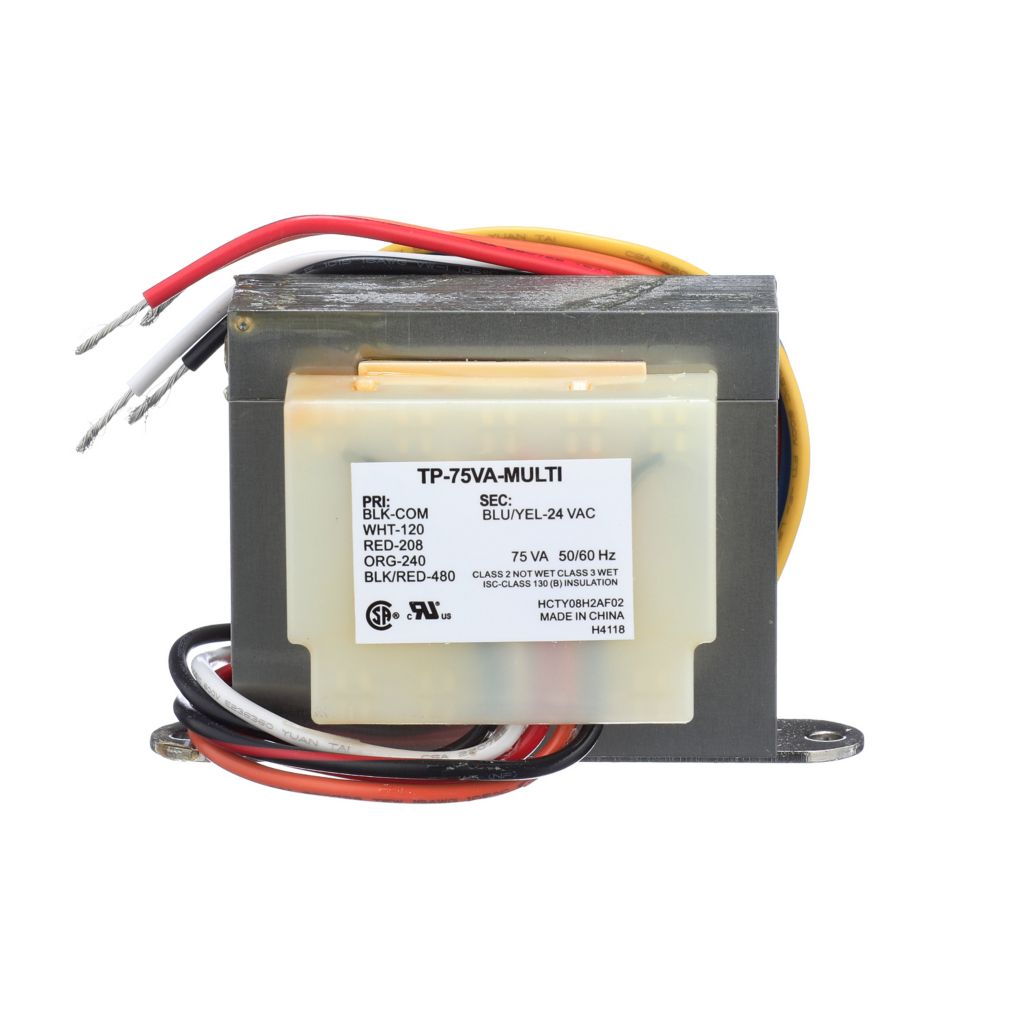

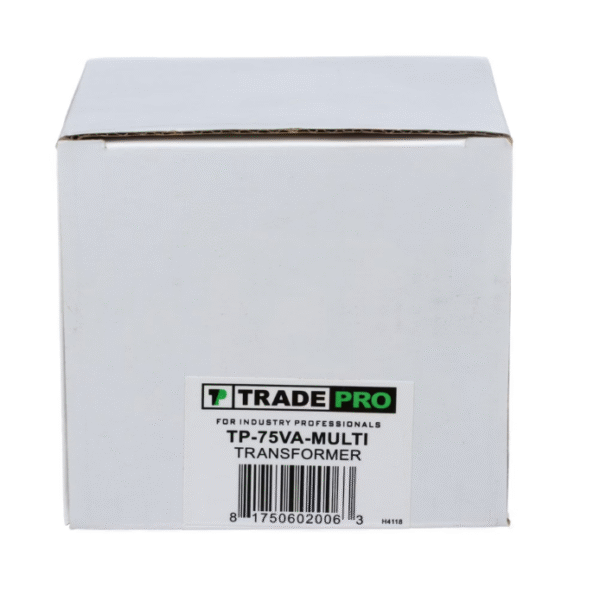

Tradepro TP-75VA-MULTI Transformer 75VA

Product Description

The TRADEPRO TP-75VA-MULTI transformer provides a power source for control circuits for air conditioning, heating, or refrigeration systems. It features multi-tap voltage options for easy replacement in all applications. The 75VA model has resettable circuit protection and a compact design.

• 75VA model has resettable circuit protection
• Compact design
• Multi-tap voltage options

Product Highlights

Control transformer with multi-tap voltage options and resettable circuit protection.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-75VA-MULTI-A
• Country of Origin: CHN

Technical Specifications

• Product Type: Transformer
• Voltage (Primary): 115V, 208V, 240V, 480V
• Voltage (Secondary): 24v
• Cycle/Hertz: 50/60 Hz
• Electrical Connection Type: Quick Connects
• Phase: Single
• Prop 65: Yes
• Transformer Primary Voltage: 120-208-240-480 VAC
• Transformer Secondary Voltage: 24 VAC
• Transformer Volt Amp Rating: 75
