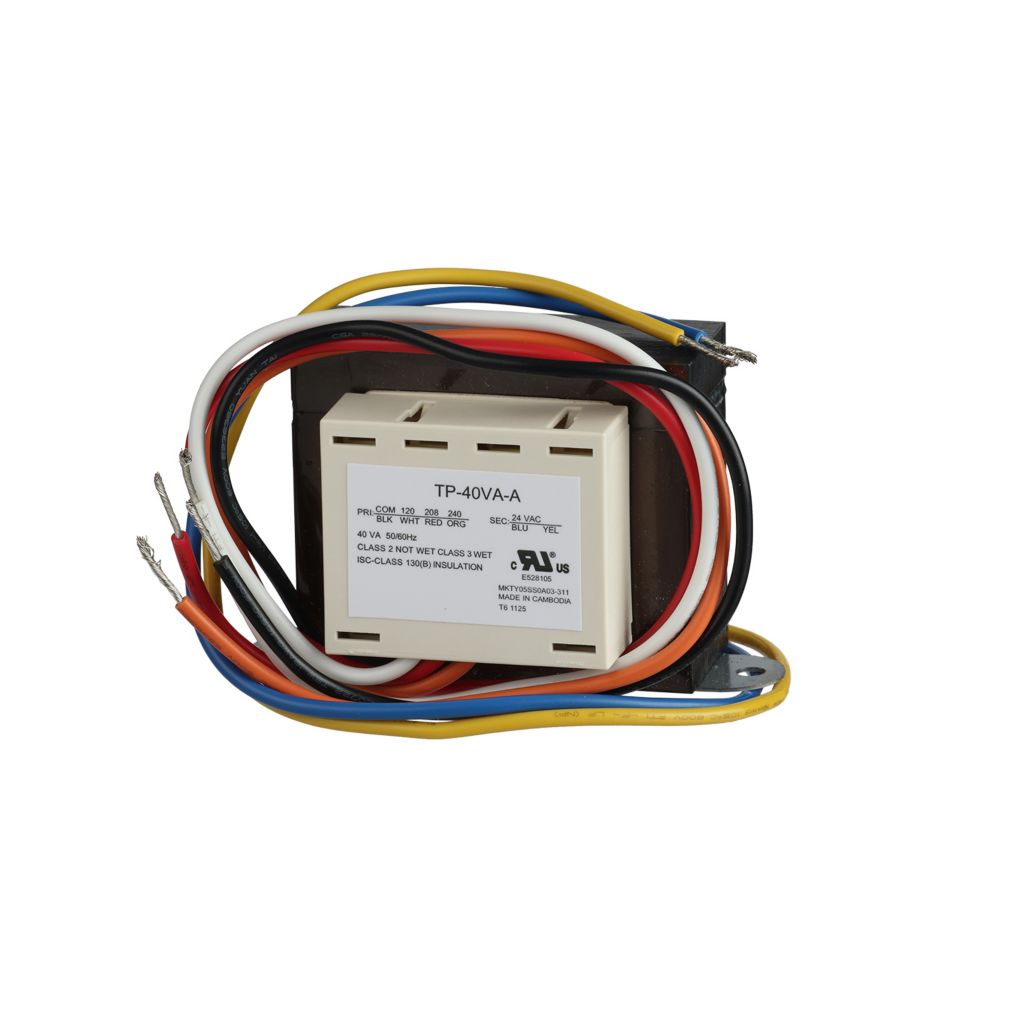

Tradepro TP-40VA-A Control Transformer 40VA

Product Description

The TRADEPRO TP-40VA-A control transformer is designed for HVACR systems, providing reliable power conversion. This single-phase transformer offers a 24 VAC output from primary voltage inputs of 120V, 208V, and 240V. With a 40VA rating, it ensures sufficient power for control circuits and easy replacement in various applications.

• Designed for reliable power conversion in HVACR systems
• Single-phase transformer
• Provides a 24 VAC output

Product Highlights

Perfect for HVACR replacements, this transformer features wire leads and quick connect for easy installation.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-40VA-A
• Country of Origin: KHM

Technical Specifications

• Brand: TradePro
• Power Source: Corded Electric
• Maximum Frequency: 60 Hz
• Minimum Frequency: 50 Hz
• Specification Met: UL
• SKU: TP-40VA-A
• Country of Origin: KHM
• Cycle/Hertz: 50/60 Hz
• Electrical Connection Type: Quick Connects
• Phase: Single Phase
• Prop 65: Yes
• Transformer Primary Voltage: 120/208-240 VAC
• Transformer Secondary Voltage: 24 VAC
• Transformer Volt Amp Rating: 40
• UPC: 810178526635
• Power Rating: 40 VA
• Turns Ratio: 1:20
• Primary Voltage: 120 VAC, 208 VAC, 240 VAC (selectable)
• Frequency: 50/60 Hz
• Wiring: Wire leads with quick connect universal
