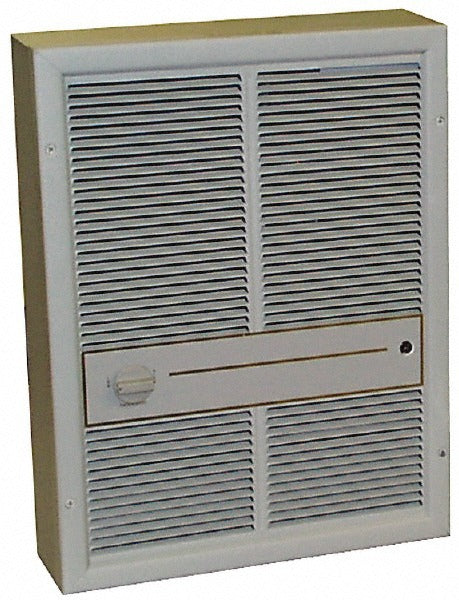

Tpi HF3316TSRP Electric Wall Heater 4000W 240V

Product Description

The TPI HF3316TSRP is a 240/208-volt electric wall heater designed for permanent installation in commercial and residential spaces requiring reliable forced-air heat. Rated at 4,000 watts on 240 volts and 3,000 watts on 208 volts, the unit delivers up to 13,652 BTU/h of heating output. A built-in fan moves air at 175 CFM to distribute heat evenly across the space. The HF3316TSRP is sized at 15 inches wide, 4 inches deep, and 19.875 inches high, making it a practical choice where wall space is limited. Electricians and HVAC technicians install this unit as a zone-heating solution in spaces that lack duct access or require supplemental heat.

This wall heater suits light commercial and residential applications including offices, garages, utility rooms, server rooms, and similar enclosed spaces. Its dual-voltage capability allows installation on either a 240-volt or 208-volt branch circuit, giving it flexibility across different electrical service configurations. The compact cabinet depth of 4 inches keeps the unit close to the wall, reducing protrusion into occupied space. Installation on a dedicated branch circuit is standard practice for this class of electric heater.

Key Features

• Dual-voltage operation: 4,000W at 240V or 3,000W at 208V on a single unit
• 13,652 BTU/h maximum heating output
• 175 CFM fan for forced-air heat distribution
• Compact 4-inch depth minimizes wall projection
• Wall-mount configuration suits ductless zone-heating installations

Compatibility

Designed as an OEM-style replacement or new-installation wall heater for 240-volt or 208-volt single-phase branch circuits in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out power at the breaker before any wiring or mounting work. This unit requires a dedicated branch circuit sized to the nameplate amperage draw. Do not install in wet or damp locations unless the unit is specifically rated for that environment.
