Product Description

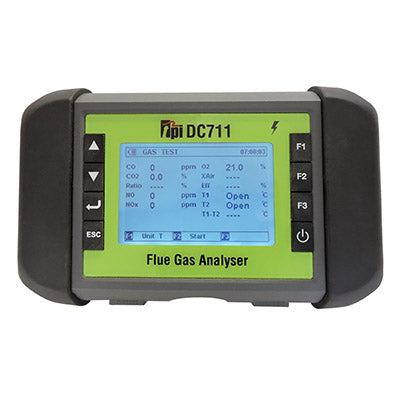

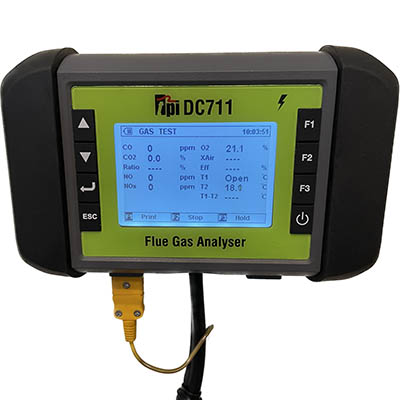

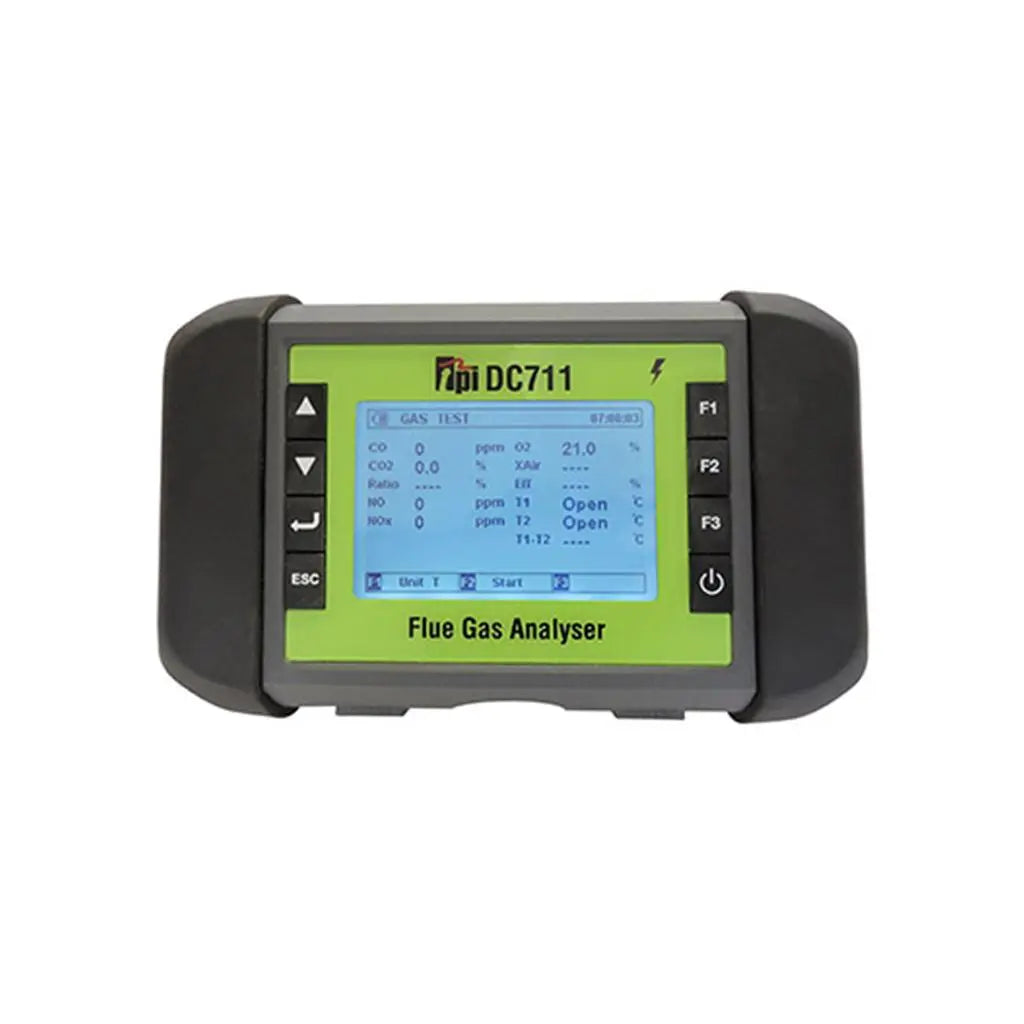

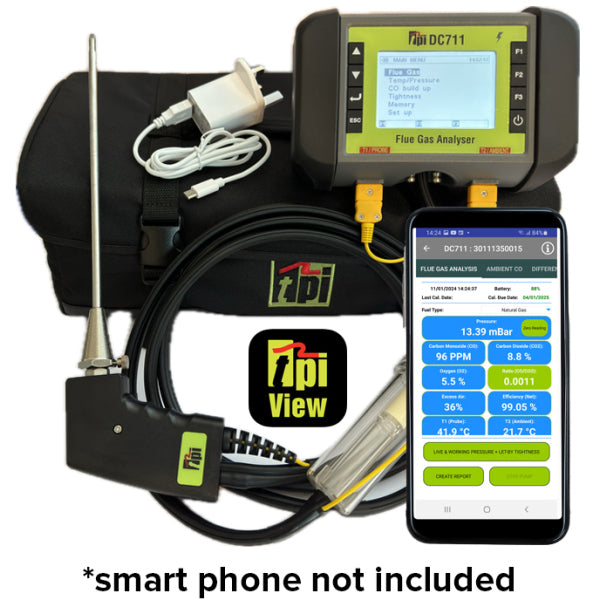

The TPI DC711 Flue Gas Analyzer is designed for combustion engineers and installers. It accurately measures CO and temperature differential and calculates CO2, CO air free, excess air, and combustion efficiency. It can operate as a standalone unit or be controlled remotely via the TPI View App.
- Easy to Use, Durable & Affordable!
- Domestic or Commercial
- Upgradeable to include NOx sensor
Product Highlights
This analyzer is equipped with electrochemical, field-replaceable O2 and CO sensors. It holds, saves, prints, and sends data, including date, time, and GPS location for comprehensive reporting.
Product Information
Standard Information
-
Brand: TPI
-
Manufacturer Part Number: DC711
Technical Specifications
-
Operating Temperature Range: 14°F to +122°F (-10°C to +50°C)
-
Battery / Battery Life: Li-ion 3.7V / > 6 Hours
-
Charger Input: USB “C” type
-
Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
-
Pressure Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
-

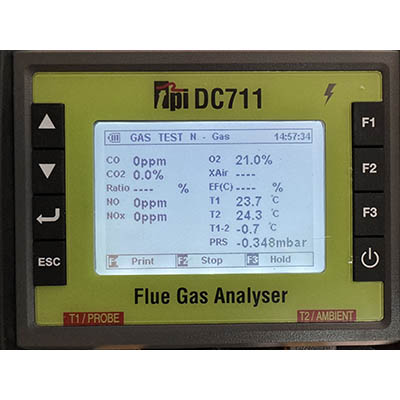

Display: Backlit Graphic LCD
-
Data Storage: 100 sets of readings (30 sets for CO Build Up), multiple pages
-
Time and Date: 24 Hour Real Time Clock
-
Dimensions: 7.28” (185mm) x 4.92” (125mm) x 2.56” (65mm)
-
Weight: 1.83lbs (830g)
-
Conforms to: EN50379 : Parts 1-3
-
Construction: Pistol Grip with Stainless Steel Shaft
-
Hose Length: 8.2’ (2500mm)
-
Insertion Length: 7.9” (200mm)
-
K Type Thermocouple Accuracy: +/- 0.3% of fullscale, +/- 2°F (1°C)
-
Maximum Temperature: 1472°F (800°C)
-
Oxygen Range: 0-25%
-
Oxygen Resolution: 0.1%
-
Oxygen Accuracy: +/- 0.3%
-
Carbon Monoxide (low) Range: 0-10,000 ppm
-
Carbon Monoxide (low) Resolution: 1 ppm
-
Carbon Monoxide (low) Accuracy: (>=100ppm) +/- 5%
-
Carbon Monoxide (high) Range: 0-100,000 ppm
-
Carbon Monoxide (high) Resolution: 0.001%
-
Carbon Monoxide (high) Accuracy: >10,000ppm: +/- 10%
-
Nitric Oxide Range: 0-5000ppm
-
Nitric Oxide Resolution: 1 ppm
-
Nitric Oxide Accuracy: +/- 5ppm (
-
Carbon Dioxide Range: 0-25%
-
Carbon Dioxide Resolution: 0.1%
-
Carbon Dioxide Accuracy: Calculated
-
CO/CO2 Ratio Range: 0-0.999
-
CO/CO2 Ratio Resolution: 0.001
-
CO/CO2 Ratio Accuracy: Calculated
-
Combustion Efficiency Range: 0-100%
-
Combustion Efficiency Resolution: 0.1%
-
Combustion Efficiency Accuracy: Calculated
-
Selectable Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
-
Pressure Measurement Range: – 150 mbar to + 150 mbar
-15 kPa to + 15 kPa
-60 inH2O to 60 inH2O
-
Pressure Measurement Resolution: 0.001 mbar (0~9.999 mbar)
0.01 mbar (10.00~149.99 mbar)
-
Pressure Measurement Accuracy: +/- 0.5 mbar FSD
-
Input Type: K-Type thermocouple
-
Temperature Measurement Range: -58°F to 1832°F (-50°C to 1000°C)*
-
Temperature Measurement Resolution: 1°F (1°C)
-
Temperature Measurement Accuracy: +/- (0.3% of rdg + 2°F) or +/- (0.3% of rdg + 1°C)
