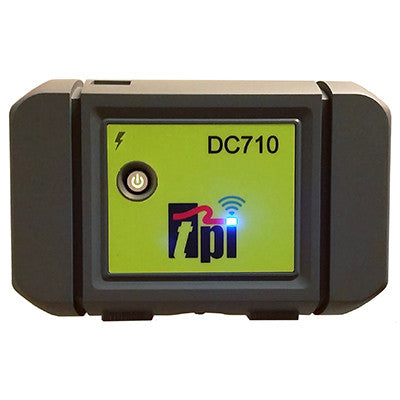

Tpi DC710C1 combustion analyzer

Product Description

The TPI DC710C1 Combustion Analyzer, when combined with a smart device and the free TPI View App, offers easy, affordable, and remote operation. Operate remotely via Bluetooth using your Smartphone or tablet and the free TPI View app. The free TPI app provides on-site reports which can instantly be emailed and stored.

• Measures CO, and Temperature Differential
• Calculates CO2, CO Air Free, Excess Air, and Combustion Efficiency
• Features a 24-hour, real-time clock for accurate documentation.

Product Highlights

The DC710C1 combustion analyzer features powerful magnetic and/or hook mounting and a durable, rugged, and sealed housing.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: DC710C1
• Country of Origin: United States

Technical Specifications

• Carbon Monoxide (CO) Range: 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater
• Oxygen (O2) Range: 0 to 25%; +/-0.3% O2
• Temperature Range: -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)
• Pre-programmed Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse
• Battery Type: Rechargeable Li-ion (3.7V/2600mA)
• Battery Life: >6 hours typical
• Charger Input: USB Connection
• Operating Temperature: -10°C to 50°C (-14°F to 122°F)
• Dimensions (W x L x D): 150mm x 100mm x 58mm (5.9" x 3.9" x 2.3")
• Weight: 490g (1.1 lb)
• Gas Sensor Type: Electrochemical field replaceable smart sensors (O2 and CO)
• Compatibility: TPI thermocouple thermometers with matching connector type
• Connector: Sub-miniature or Lumberg connector
• Probe Type: Temperature Probe
