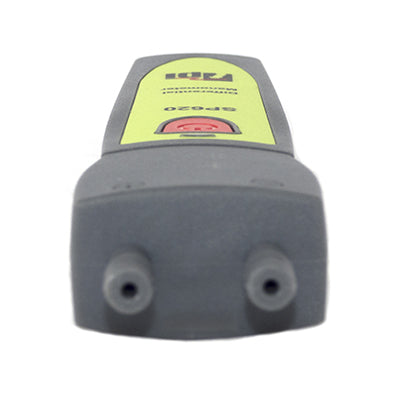

Tpi 620 Dual Input Differential Pressure Meter

Product Description

The TPI 620 is a dual input differential manometer with +/- 60 inH2O input range. Use with free TPI View App to display pressure. Features one touch zero function and Trim mode to stabilize fast changing pressures. Capable of achieving an increased resolution of 0.01 mbar.

• One touch zero function
• Trim mode to stabilize fluctuating readings
• 0.01 inH2O resolution

Product Highlights

The TPI 620 manometer measures pressure and features a 4 digit display with backlight and auto power off.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: 620

Technical Specifications

• Input Type: Dual input differential
• Connection Type: 1/4 inch barb
• Measurement Range: -150 mbar to +150mbar (-60 inH2O to +60 inH2O)
• Accuracy: +/-0.05 mbar (0 to 1 mbar) / +/-(1.5% + 20 digits) (> 1 mbar) +/-0.02 inH2O (0 to 1 inH2O) / +/-(1.5% + 20 digits) (> 1 inH2O)
• Resolution: 0.01 mbar / 0.01 inH2O
• Units of Measure: 7 Units (mbar, inH2O, kPa, PSI, mmHg, inHg, mmH2O)
• Operating Temperature: -20 0C to 50 0C (-4 0F to 122 0F)
• Communication: Bluetooth version 4.2 (Use with TPI Smart Probe App)
• Battery Type: AAA x 3
• Battery Life: 80 hours typical
• Type: Manometer
• For Measuring: Pressure
• Display: 4 Digit LCD with backlight
• Resolution (max): 0.01" H2O
• Functions: One Touch Zero, Back-light, Smoothing
• Auto Power Off: 40 minutes
