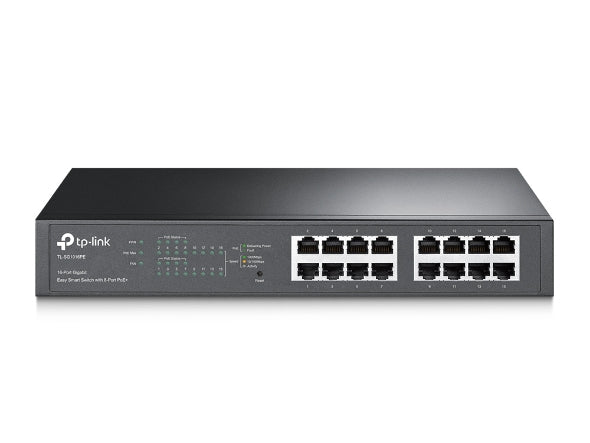

Tp-link tl-sg1016pe 16-port Gigabit Poe Switch 110W

Product Description

The TP-LINK tl-sg1016pe is a 16-port gigabit Easy Smart switch with 8 PoE plus ports, designed for small office and commercial network deployments. All 16 ports operate at 10/100/1000 Mbps with auto negotiation and auto MDI/MDIX, eliminating the need for crossover cables. The 8 PoE plus ports conform to IEEE 802.3at, supporting up to 30 watts per port with a total PoE power budget of 110W. Switching capacity reaches 32 Gbps with a packet forwarding rate of 23.8 Mbps. Network technicians and IT professionals install this switch to consolidate data and power delivery to access points, IP cameras, and VoIP phones over a single Cat5e or Cat6 cable run.

This switch is suited for wired network expansion in residential, small business, and light commercial environments. It fits in standard 1U rack space at 11.6 x 7.1 x 1.7 inches and accepts universal AC input at 100-240VAC, 50/60Hz, making it compatible with domestic and international power. The web-based GUI and Easy Smart Configuration Utility allow VLAN setup, QoS prioritization, IGMP snooping, and link aggregation without requiring a dedicated network management console. Maximum power consumption under full PoE load is 124.4W.

Key Features

• 8 PoE plus ports (IEEE 802.3at) with up to 30W per port and 110W total PoE budget
• 16 x 10/100/1000 Mbps RJ45 ports with auto negotiation and auto MDI/MDIX
• 32 Gbps switching capacity and 23.8 Mbps packet forwarding rate
• Supports up to 128 simultaneous VLANs with MTU, Port, and Tag VLAN modes
• QoS with port-based, 802.1p, and DSCP priority across 4 priority queues
• L2 features including IGMP snooping V1/V2/V3, link aggregation, port mirroring, cable diagnostics, and loop prevention
• FCC, CE, and RoHS certified; store-and-forward transmission method

Compatibility

Compatible with IEEE 802.3af and IEEE 802.3at compliant powered devices. Works with Cat5, Cat5e, and Cat6 cabling up to 100 meters. Management utility requires Microsoft Windows.

Installation Notes

Installation is typically performed by a network technician or qualified IT professional. Power down connected powered devices before making or removing PoE connections. Ensure total connected PoE load does not exceed the 110W budget to avoid automatic port power reduction. Rack-mount installations should follow standard 1U mounting practices and provide adequate airflow around the unit.

Technical Specifications

• PoE Power Budget: 110W total, up to 30W per port
• PoE Standard: IEEE 802.3at (PoE plus), IEEE 802.3af
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• Ports: 16 x 10/100/1000 Mbps RJ45 (Ports 1-8 PoE plus)
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9KB
• Power Supply: 100-240VAC, 50/60Hz
• Maximum Power Consumption: 124.4W
• Dimensions (W x D x H): 11.6 x 7.1 x 1.7 inches
• Fan Quantity: 1
• Operating Temperature: 32 degrees F to 104 degrees F
• Storage Temperature: -40 degrees F to 158 degrees F
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, CE, RoHS
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Standard Information

• Brand: TP-LINK
• Manufacturer Part Number: tl-sg1016pe
