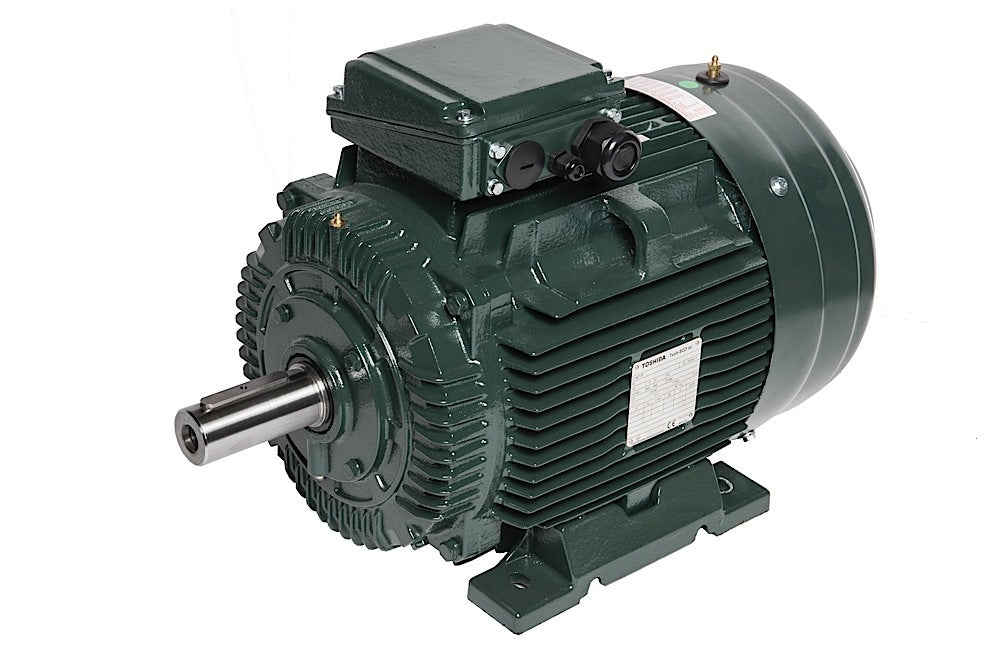

TOSHIBA Y114SDMV7GS-PL Electric Motor 1.5 HP

Product Description

The TOSHIBA Y114SDMV7GS-PL is a three-phase electric motor designed for reliable performance in various applications. This model meets IEC 60034 standards, ensuring it is suitable for pumps, fans, conveyors, compressors, centrifuges, and mixers. The motor features a totally enclosed and fan-cooled (TEFC) design, which provides durability and efficient operation.

• Three-phase operation for high efficiency.
• Totally Enclosed Fan Cooled (TEFC) enclosure.
• Designed per IEC 60034 standards.

Product Highlights

With an IP55 protection rating, this motor withstands dust and water, making it ideal for industrial settings.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Motor Type: AC Motor

Technical Specifications

• Horsepower: 1.5 HP
• Power: 1.1 KW
• Speed: 1800 RPM
• Input Voltage: 230/400 V
• Motor Voltage Phases: 3 Phase
• Motor Frequency: 50/60 Hz
• Full Load Amps: 4.3/2.5 A
• Enclosure: TEFC
• Frame: 90L
• Efficiency: IE3
• Ingress Protection: IP55
• Ambient Temperature: 40C
• Service Factor: 1.1
• Duty: S1
• Frame Material: Aluminum
• Flange: B5
• Space Heaters: Optional
• Poles: 4
• Nominal Full Load Efficiency: 84.1
• Weight: 21 lbs
