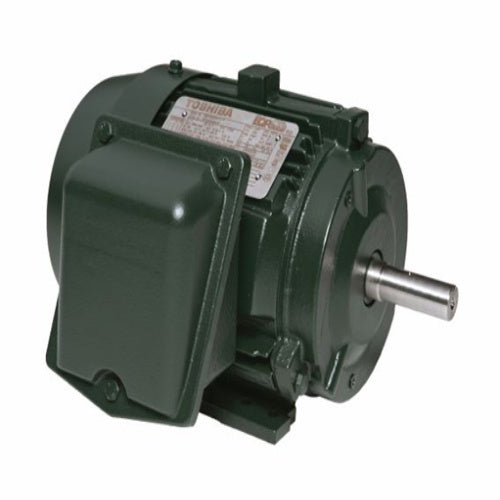

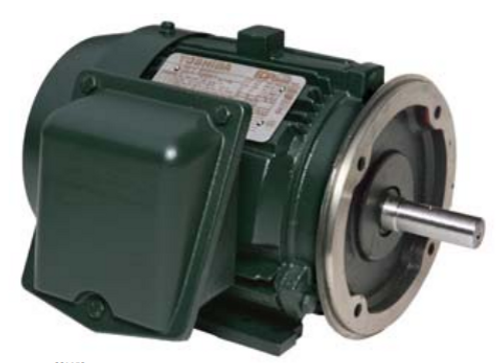

TOSHIBA 0154SDSR42A-P AC Motor 15 hp 230/460 VAC TEFC

Product Description

The TOSHIBA 0154SDSR42A-P is a reliable three-phase AC motor designed for continuous duty. This motor is suitable for various applications including compressors, fans, and blowers. It features a totally enclosed fan-cooled (TEFC) design, which protects the motor from dust and moisture. The motor operates at 230/460 VAC and has a speed of 1800 RPM, making it versatile for different operational needs.

• Designed for continuous duty applications.
• TEFC enclosure enhances durability and protection.
• Ideal for compressor, fan, and blower use.

Product Highlights

The TOSHIBA 0154SDSR42A-P AC motor offers efficient performance and reliability, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: TOSHIBA
• Type: Continuous-Duty Type IKH

Technical Specifications

• Horsepower: 15 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 38/19 A
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 1800 RPM
• Enclosure Type: TEFC
• Frame: 254TC
• Shaft Size: 1-5/8 in
• Torque Rating: 44.5 ft-lb
• Mounting Style: C-Face Foot
• Temperature Rating: 40 deg C
• Material: Cast Iron
