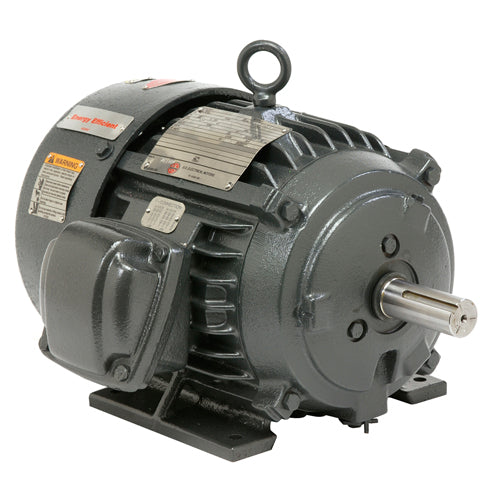

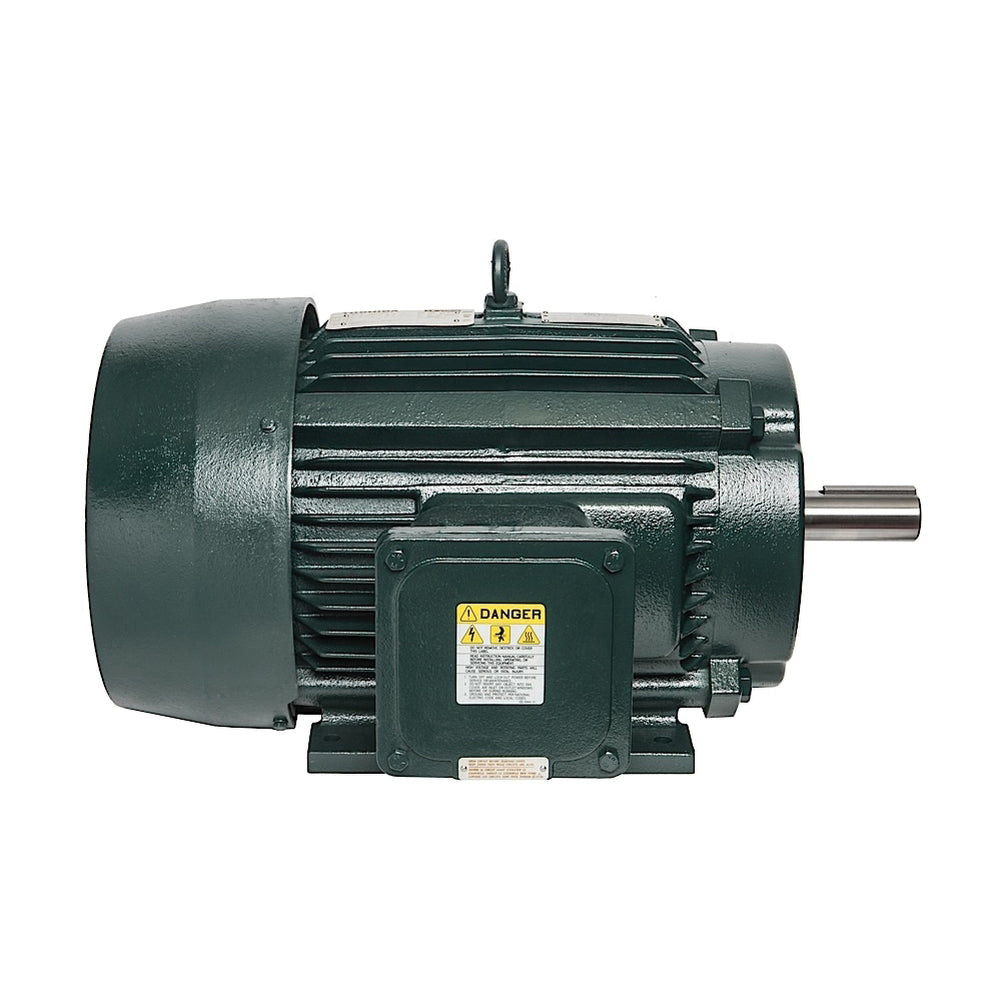

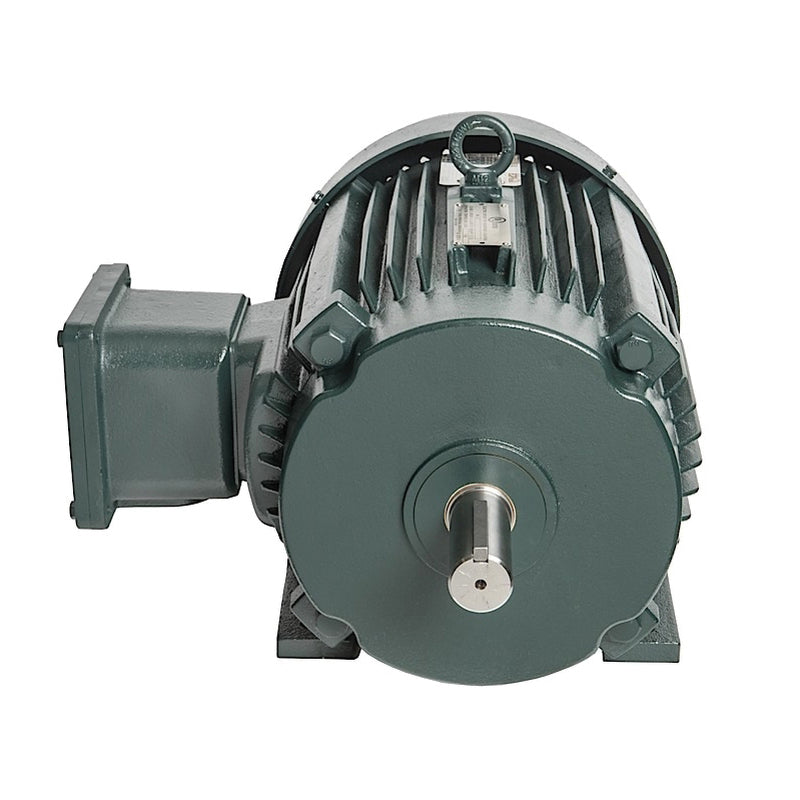

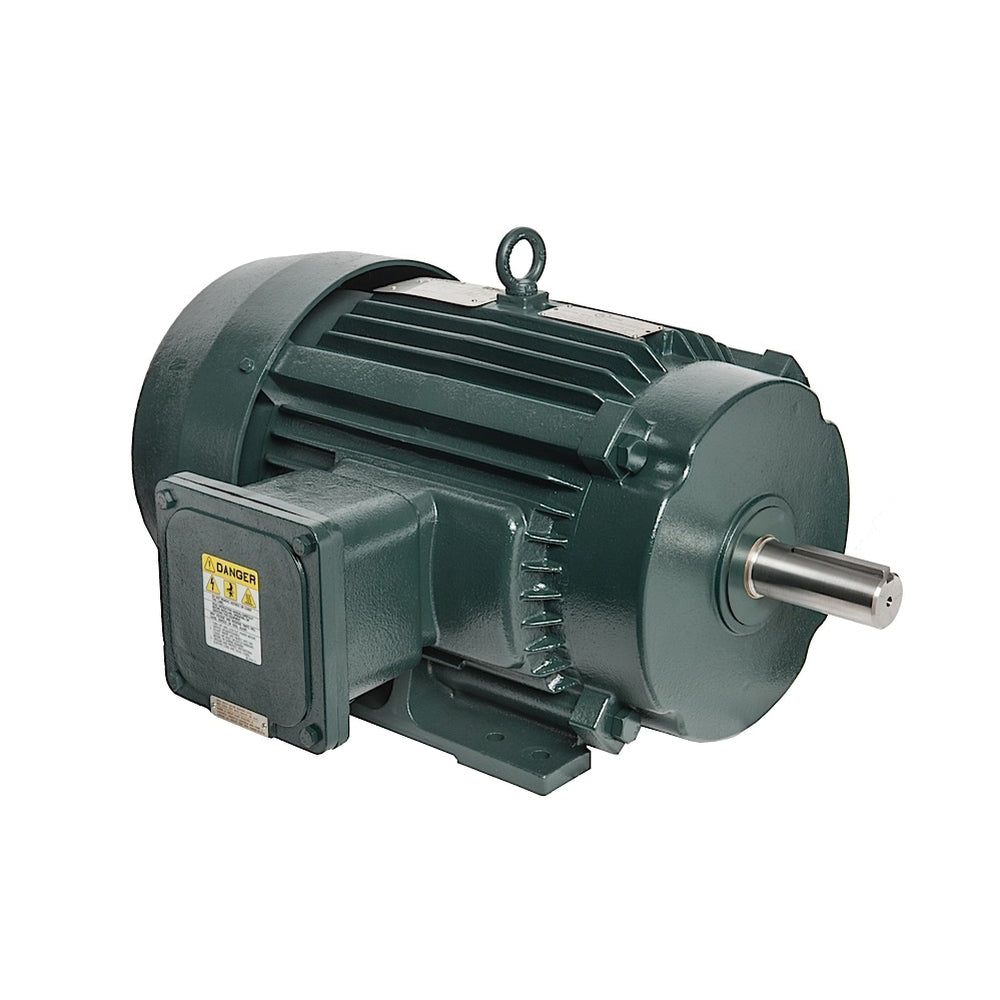

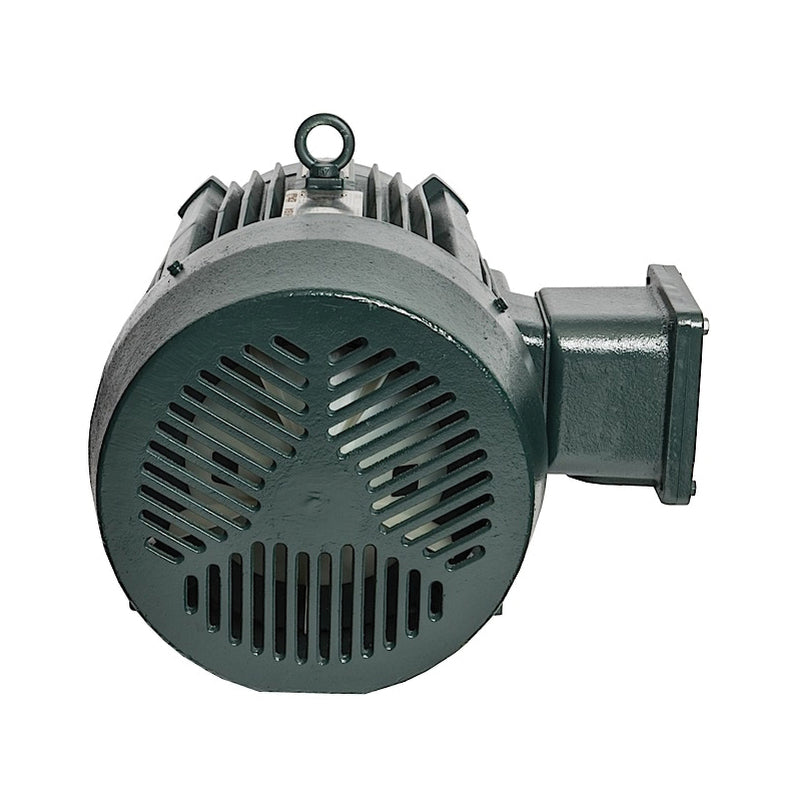

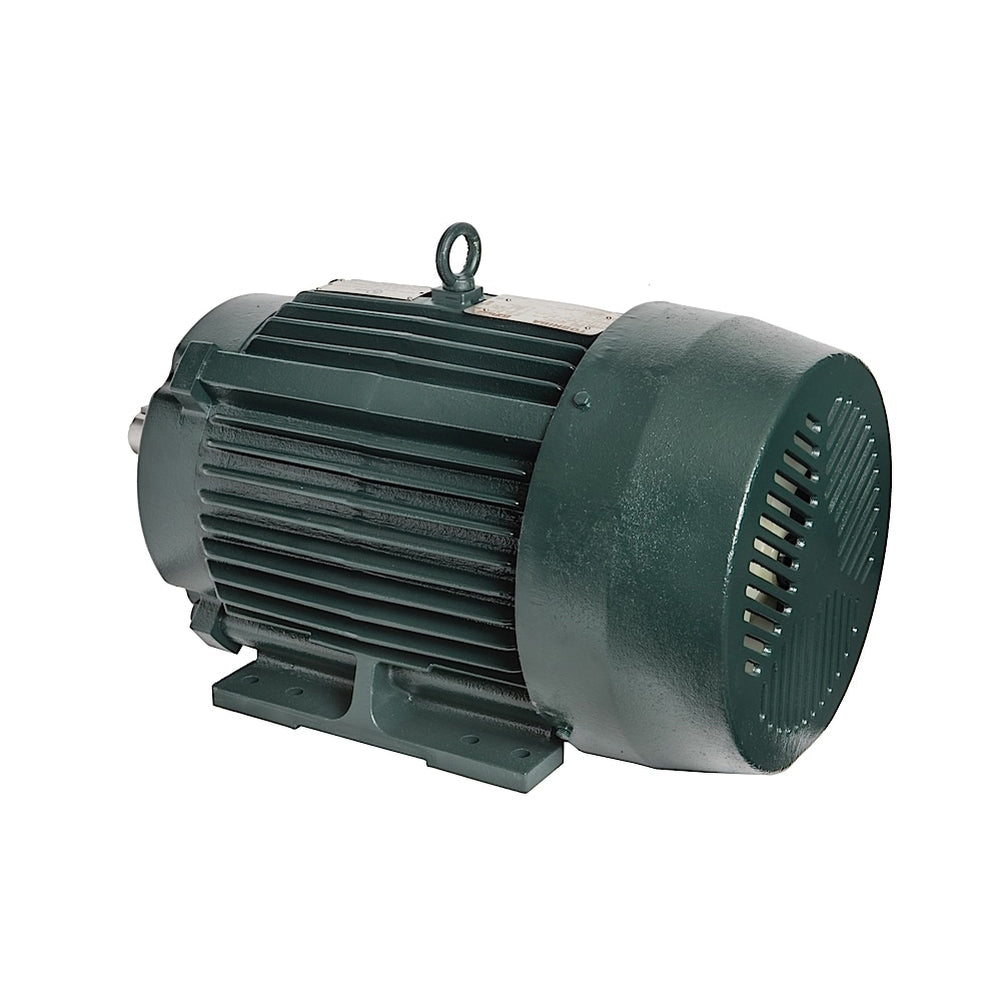

TOSHIBA 0052XPEA41A-P Explosion Proof Motor

Product Description

The Toshiba 0052XPEA41A-P is an electric motor built for hazardous environments. This three-phase motor is engineered to contain internal explosions, ensuring safety in locations where explosive gases may be present.

• Explosion-proof enclosure
• Operates at thirty-six hundred RPM
• Designed for continuous duty

Product Highlights

This motor features a robust cast iron frame and Class F insulation, providing durability and reliability in demanding applications.

Product Information

Standard Information

• Brand: Toshiba
• Motor Voltage Phases: Three Phase

Technical Specifications

• Input Voltage: 230/460 V
• Motor Frequency: 60 Hz
• Motor Horsepower: 5 HP
• Power Rating: 3.7 kW
• RPM: 3600 RPM
• Full Load Speed: 3500 RPM
• NEMA Design: NEMA Design B
• Motor Duty Cycle: Continuous
• Motor Insulation Class: Class F
• Motor Enclosure Type: Totally Enclosed Explosion Proof
• Enclosure Type: TEXP
• Frame Size: 184T
• Full Load Amps: 6 Amp
• Service Factor: 1.15
• Efficiency: 88.5%
• Ambient Temperature: 40 C
• Weight: 121 lbs
• Dimensions: 15.4 in L x 9.56 in H
• Shaft Size: 1.125 in Dia x 2.73 in L
