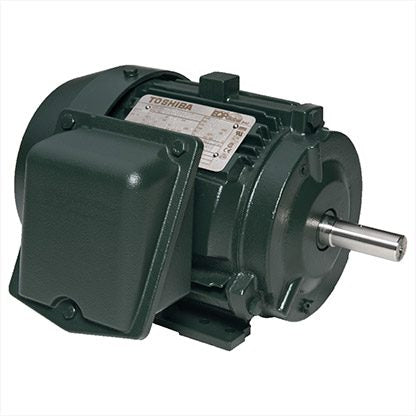

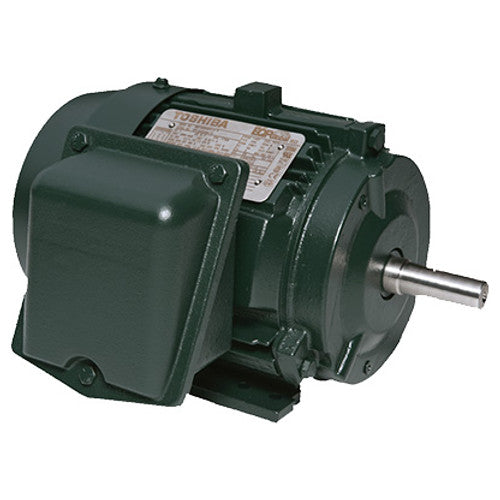

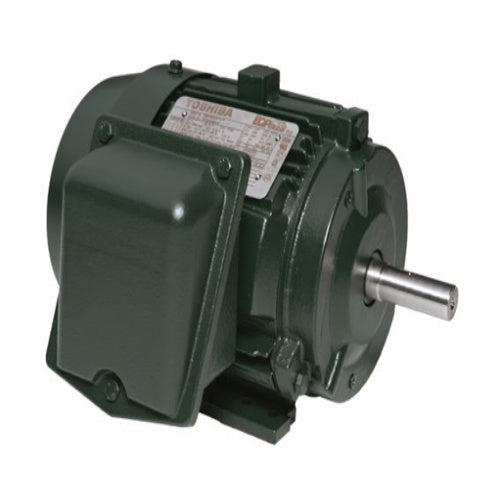

TOSHIBA 0022SDSR41A-P Electric Motor 2 HP

Product Description

The TOSHIBA 0022SDSR41A-P is a reliable 3-phase electric motor designed for various applications. Operating at 230 or 460 volts and 60 Hertz, this motor provides a horsepower of 2 and runs at a speed of 3600 RPM. Its totally enclosed fan cooled (TEFC) design helps protect internal components from dust and contaminants. The durable cast iron frame ensures long-lasting performance in demanding environments.

• 3-Phase operation for efficient performance
• TEFC enclosure to guard against harsh conditions
• Continuous duty cycle for dependable use

Product Highlights

This motor is ideal for industrial use, providing consistent power and efficiency for a variety of machinery and equipment.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0022SDSR41A-P

Technical Specifications

• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Insulation Class: Class F Insulation
• Motor Horsepower: 2 HP
• Motor Frame Model: 145T
• Motor Frequency: 60 Hz
• Motor Duty Cycle: Continuous Duty
• Motor NEMA Design: NEMA Design B
• Motor Voltage: 230/460 V
• Motor RPM: 3600 RPM
• Motor Amperage (Full Load): 5.20/2.60 A
• Motor Frame Construction: Cast Iron
• Weight: 60 lbs
• Efficiency: 85.5%
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Full Load Torque: 3.01 lb-ft
