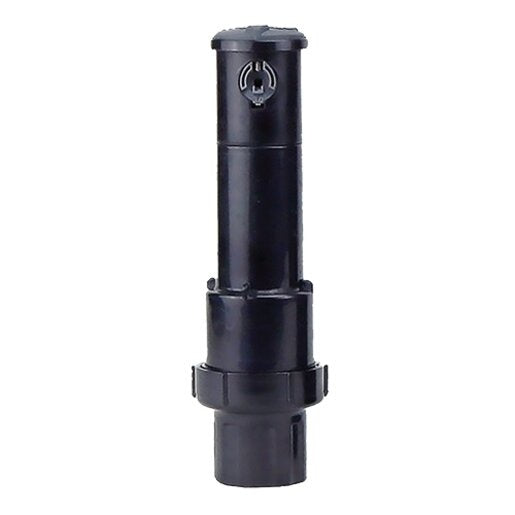

Toro T5S-RS Shrub Rotor with Rapid Set 3/4 Inch

Product Description

The TORO T5S-RS is a shrub-mount rotor sprinkler head featuring Rapid Set adjustment, designed for low-angle coverage in ground-level irrigation applications. Built on a 3/4 inch body, this rotor delivers arc and radius adjustment without the need for a separate adjustment tool, making field tuning faster during installation or routine service. Irrigation contractors and landscape professionals install this head in shrub beds, low-clearance plantings, and retrofit scenarios where a pop-up rotor would be blocked by foliage or hardscape. The Rapid Set mechanism is the defining functional feature, reducing adjustment time per head across large zones.

The T5S-RS is suited for residential and light commercial irrigation systems where shrub-mount positioning is required. It fits into standard rotor zones and is typically installed on risers or swing joints to achieve the correct spray angle and height for the planting area. It is a practical choice for renovation work and new installs alike where low-profile rotor coverage is the design goal.

Key Features

• Rapid Set arc and radius adjustment without a separate tool
• Shrub-mount rotor design for low-angle, ground-level coverage
• 3/4 inch body inlet for standard riser or swing joint installation
• Fixed-mount head eliminates pop-up mechanism for simplified maintenance
• Compatible with standard rotor zone flow rates and pressures

Compatibility

Designed as an OEM-style shrub rotor for use in residential and light commercial drip and spray irrigation systems requiring a 3/4 inch fixed-mount rotor head.

Installation Notes

Installation is typically performed by licensed irrigation contractors or qualified landscape professionals. Shut off the irrigation system and depressurize the supply line before removing or installing any head. The T5S-RS should be mounted on a riser or swing joint at the correct height to achieve unobstructed coverage of the target zone. Follow local plumbing and irrigation codes for backflow prevention and system pressure requirements.

Technical Specifications

• Inlet Size: 3/4 inches
• Mount Type: Shrub (fixed mount)
• Adjustment Type: Rapid Set (tool-free arc and radius)
• UPC: 090258055983
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: T5S-RS
