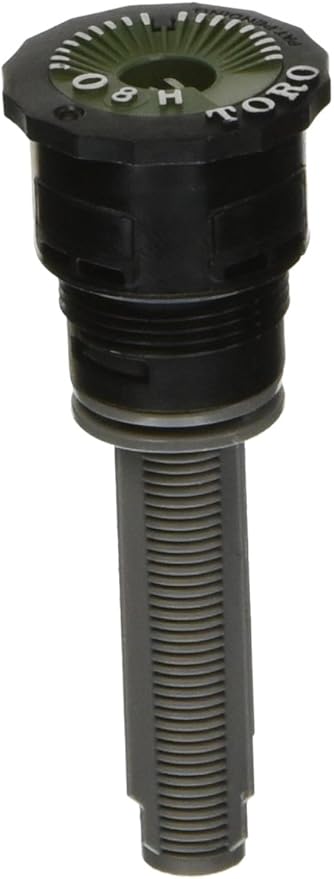

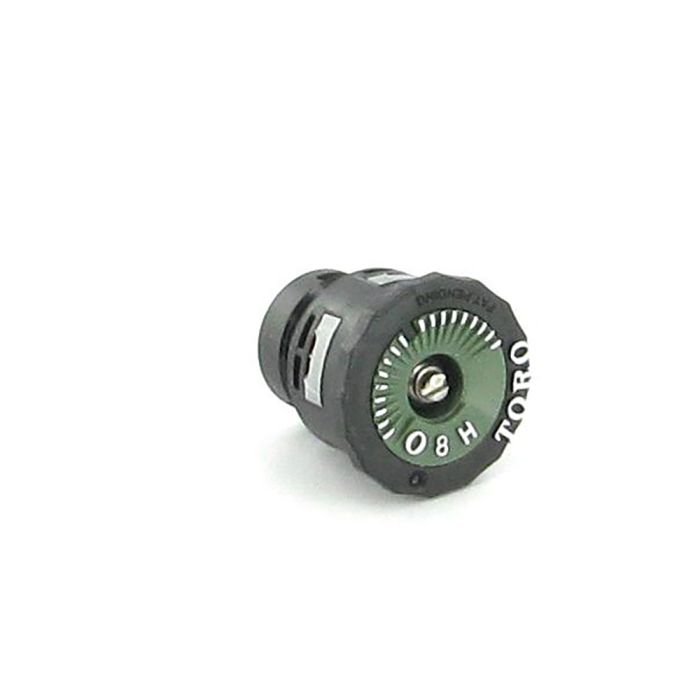

Toro 8T-H Precision Half Circle Male Nozzle 8 ft

Product Description

The TORO 8T-H Precision Series Spray Nozzles deliver increased efficiency. These nozzles lower the standard precipitation rate to 1" per hour or less, designed to use less water and reduce runoff. The H2O Chip Technology distributes water efficiently to reach the desired radii with less flow.

• H2O Chip Technology distributes water more efficiently.
• Uniform droplet size increases wind resistance and minimizes run-off.
• Consistent performance from 20 to 50 PSI.

Product Highlights

The TORO Precision Series Spray Nozzle achieves higher irrigation efficiency with less water. It features a uniform droplet size and greater operating pressure range.

Product Information

Standard Information

• Brand: TORO
• Manufacturer Part Number: 8T-H

Technical Specifications

• Brand: Toro
• Product Type: Spray Nozzles
• Max PSI: 50 PSI
• Operating PSI: 20 - 50 PSI
• Spray Pattern: Half Circle
• Connection: Male
• Spray Radius: 8 ft
• Flow Rate: 0.26 - 0.34 GPM
• Exterior Finish: Stainless Steel
• Inlet Connection Type: Threaded
• Number of Ports: 2
• Specification Met: ASME B16.34, MSS SP 72, MSS SP 80
• Manufacturer: Toro
• UPC: 090258053125
• Connector Type: Threaded
• Thread Type: Toro
