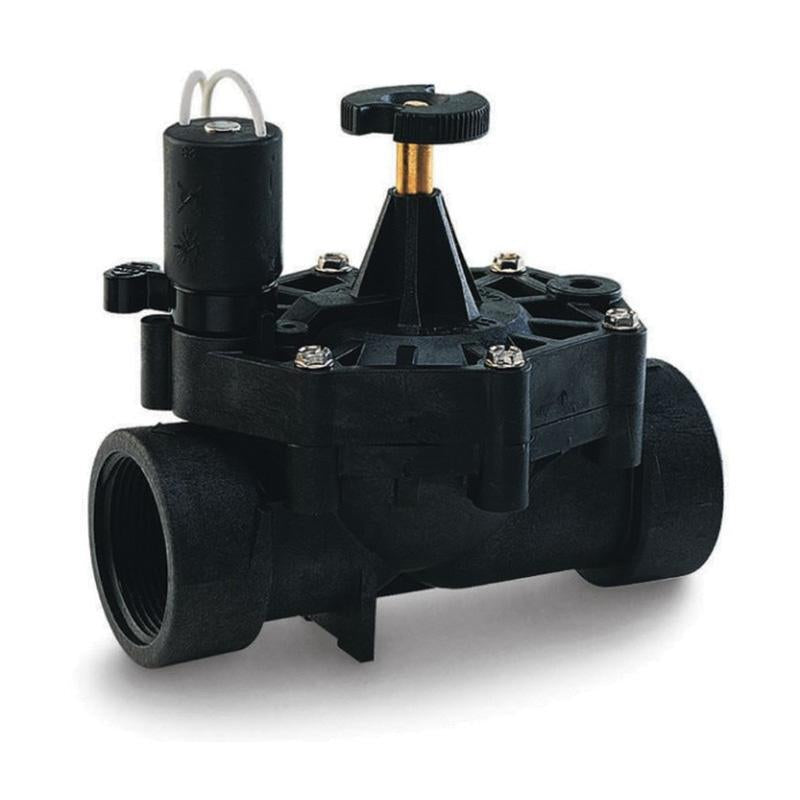

Toro 700-2 Irrigation Control Valve 2 Inch Plastic

Product Description

The TORO 700-2 is a 2-inch nominal irrigation control valve built for residential and commercial landscape irrigation systems. It handles a wide flow range of 0.1 to 180 GPM and operates within a pressure range of 10 to 150 psi, making it suitable for a broad range of zone configurations. The plastic body construction keeps weight low and resists corrosion in buried or exposed irrigation environments. Drawing 0.48 amps, this valve is designed for standard low-voltage solenoid control, compatible with most irrigation controllers. Licensed irrigation contractors and experienced landscape professionals are the primary installers of this valve.

The TORO 700-2 is suited for use in both residential and light commercial irrigation applications. Its 2-inch nominal size makes it appropriate for mainline branch zones serving multiple heads or drip circuits with high flow demand. The wide operating pressure range of 10 to 150 psi allows it to function across systems with varying supply conditions, from low-pressure well-fed systems to municipal supplies. It is typically installed in valve boxes below grade or in above-ground manifold assemblies.

Key Features

• 2-inch nominal valve size for high-flow zone applications
• Flow range of 0.1 to 180 GPM supports a wide variety of head counts and drip layouts
• Operating pressure range of 10 to 150 psi accommodates diverse supply conditions
• Plastic body construction resists corrosion and reduces overall assembly weight
• 0.48-amp solenoid draw compatible with standard low-voltage irrigation controllers

Compatibility

Designed as an OEM-style replacement or new-installation valve for 2-inch nominal irrigation control applications in residential and commercial landscape systems.

Installation Notes

Installation should be performed by a licensed irrigation contractor or qualified landscape professional familiar with local plumbing and irrigation codes. Shut off the main water supply and depressurize the line before removing or installing the valve. Use thread sealant or PTFE tape on all threaded connections and verify flow direction markings on the valve body are oriented correctly before final assembly. Test the solenoid operation at the controller before burying or enclosing the valve.

Technical Specifications

• Nominal Size: 2 inches
• Flow Rate: 0.1 to 180 GPM
• Operating Pressure: 10 to 150 psi
• Solenoid Current Draw: 0.48 amps
• Body Material: Plastic

Standard Information

• Brand: TORO
• Manufacturer Part Number: 700-2
