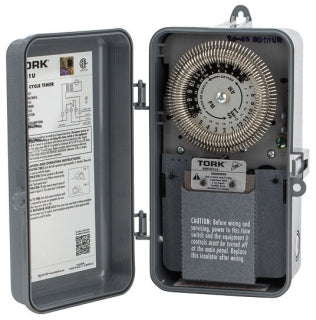

TORK 8001U SPDT 440V 3A TIME SWITCH

Product Description

The TORK 8001U SPDT 440V 3A Time Switch is designed for reliable timer control in various applications. It features a power rating of three-quarters horsepower at one hundred twenty volts for motor operations. This time switch is suitable for use in duty cycling, irrigation, laboratory experiments, pumping, process control, and ventilating fan applications.

• Standard 24-hour cycle timer
• Compatible with NEMA 1 enclosures
• UL and CSA approved for safety

Product Highlights

The TORK 8001U offers a minimum of fifteen minutes for both ON and OFF cycles, providing flexible timing options for critical operations.

Product Information

Standard Information

• Brand: TORK
• Model: 8001U

Technical Specifications

• Power Rating: 3/4 HP at 120 VAC (Motor)
• Current Rating: 20 Ampere at 120/240/480 VAC (Resistive)
• Voltage Rating: 480/120 VAC at 60 Hz (Transformer)
• Operating Temperature: -40 to 165 Degrees Fahrenheit
• Enclosure: NEMA 1 (indoor use)
• Material: Metal
• Minimum ON Time: 15 Minutes
• Minimum OFF Time: 15 Minutes
